Lights (GloBrite White Light ans Dimmer Circuit)
From the Lights screen you can manually turn on or off individual or Groups of GlowBrite or Dimmer lights. Lights displayed in the Lights screen are configured from the Circuits screen.
To access the Lights screen, tap the Lights icon on the Home screen. Tap the light name to manually switch the light circuit on or off (Green light indicates
the light is on). Note: A Green number badge displayed on the Home screen Lights and Features icon, indicates the number of individual and/or groups of lights currently turned
on. To hide the number badge on the Features icon, turn Visible in Features OFF.
Configure a GloBrite White Light and Dimmer Light: Go to Settings > Advanced System Configuration > Installation Setup > Circuits. Select AUX Circuits, select the light AUX circuit, tap Circuit
Function and select GlowBrite White or Dimmer.
Lights
GlowBrite White Light
IntelliBrite White Light
Dimmer Generic Light
IntelliBrite Color Light
GroupIndividual
Dimmer Level
GloBrite White Light
50%
▲
▲

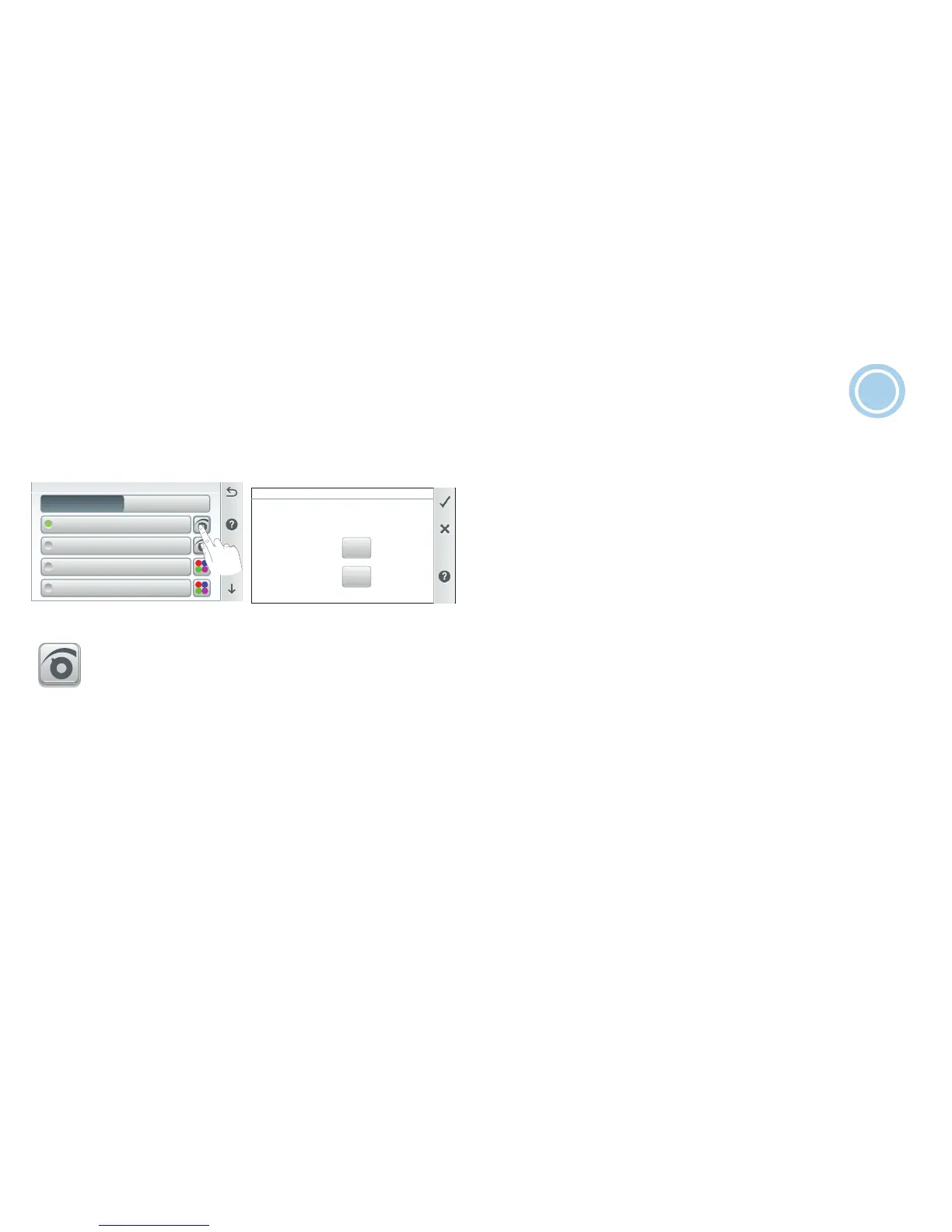

Tap this edit button to display the Dimmer level screen. Note: To assign a
GloBrite White Light or Dimmer circuit, go to Settings > Advanced System
Configuration > Installation Setup > Circuits.
GloBrite White Light Dimmer Level: Use the Up/Down arrow button to increase
or decrease the brightness levels of the light. Brightness levels are from 50%,
75% and 100% increments.
Dimming Lights (50%, 75%, 100%)
Lights that have dimming functionality can be dimmed from the Lights screen. Only incandescent
tungsten filament lights may be dimmed. IntelliBrite, Fiber-optic, or Halogen lights cannot be
dimmed. The feature circuit must be assigned a Dimmer circuit function. Note: Feature Circuits
can turn on light dimming circuits, but lights cannot be dimmed using this feature. The
dimming level must be changed for each light dimming circuit.
GloBrite White & Dimmer ON/OFF Button: On the Lights screen, tap the Individual button to
display the assigned light circuits. Tap the GloBrite White light or the Dimmer Generic Light button
to switch the light on or off. Tap Return Arrow to return to the Home screen.
GloBrite & Dimmer Edit Button:

Pentair INTELLICENTER Specifications

General

Expandable	Yes
Energy Management	Yes
Touchscreen Display	Yes
Remote Access	Yes, via Mobile App
User Interface	Touchscreen
Remote Monitoring	Yes
Number of Circuits	Up to 40
Wireless Connectivity	Yes
Power Requirements	120V AC
Enclosure Rating	NEMA 3R
