460906 Rev. D 8/2020 MASTERTEMP
125 Pool and Spa Heater Installation and User’s Guide
11
Section 1. Installation Instructions

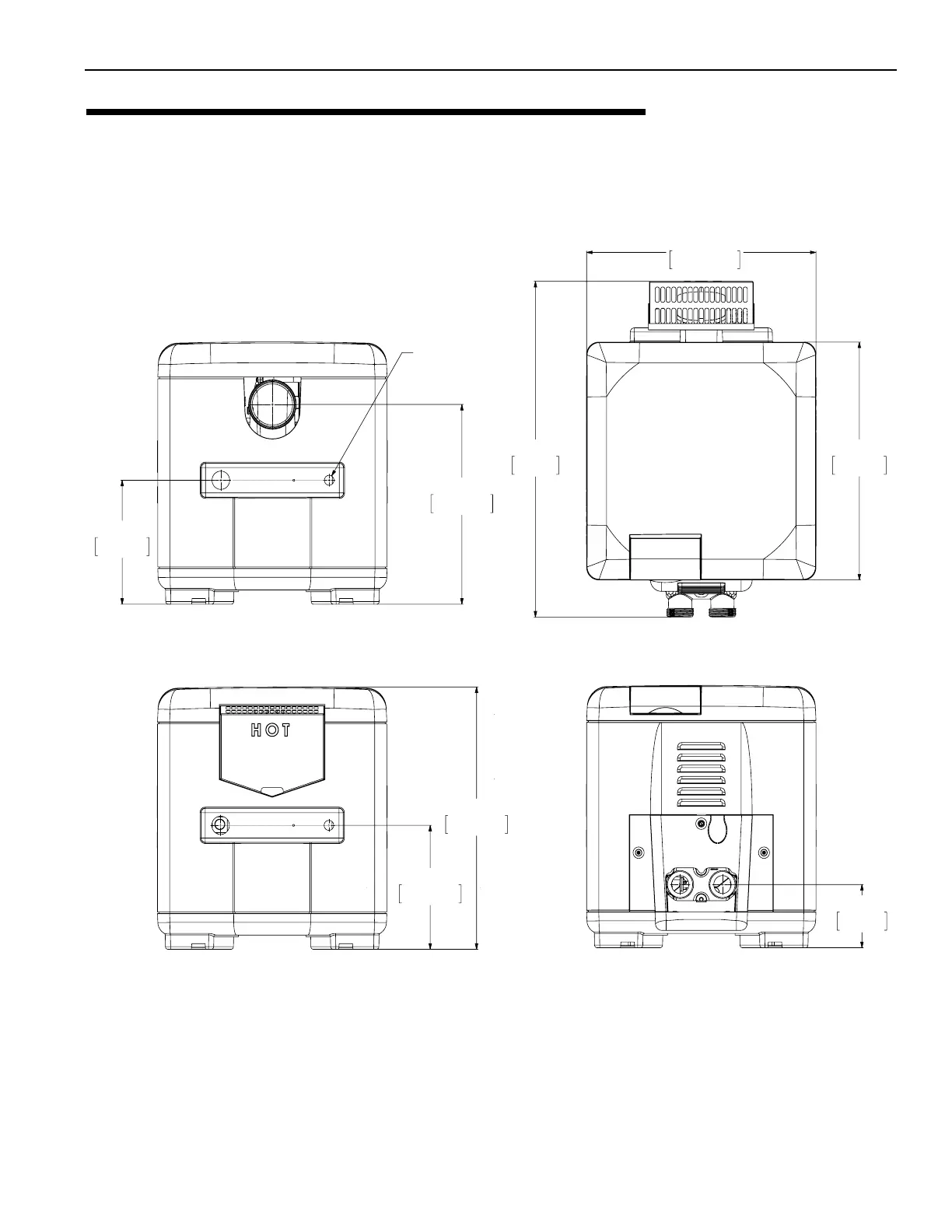

DIMENSIONS IN INCHES
Figure 2.
5.5"
14cm
20.85"
52.95cm
21"
53 cm
29.43"
74.76
23"
58.4cm
10.87"
27.6cm
10.87"
28.cm
17.5"
44.5cm
ELECTRICAL
CONDUIT PORT
FRONT VIEWTOP VIEW
EXHAUST SIDE VIEWPLUMBING SIDE VIEW
These installation instructions are designed for use by qualied personnel only, trained especially for installation of this
type of heating equipment and related components. Some states require installation and repair by licensed personnel.
If this applies in your state, be sure your contractor bears the appropriate license. See Figure 2 for Outdoor and Indoor
Installations.
SPECIFICATIONS (DIMENSIONS IN CENTIMETERS AND INCHES)
