460906 Rev. D 8/2020 MASTERTEMP
125 Pool and Spa Heater Installation and User’s Guide
15
Section 1. Installation Instructions
AUTOMATIC BY-PASS

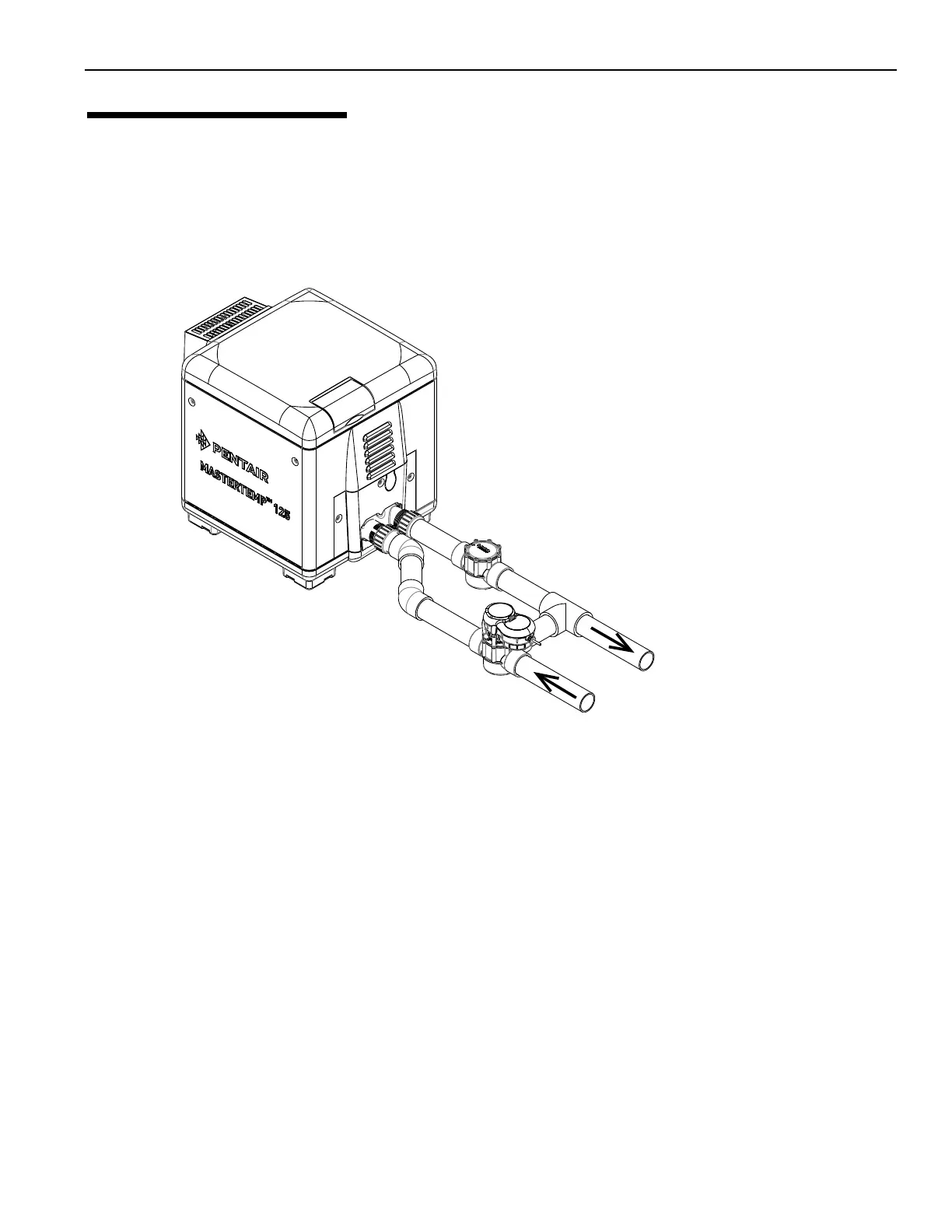

Figure 8 shows a plumbing diagram for an automatic BY-PASS (IntelliValve®). This in conjunction with an IntelliFlo
VSF pump can provide added longevity of the heater and increased cost savings of operation. A 3-Port valve with an
IntelliValve actuator is installed at the heater inlet. A check valve is installed at the heater oulet so that water cannot
ow back into the heater. See instructions for Automatic Bypass valve kit (P/N 462048) for setting the open and closed
position of the IntelliValve.
WARM WATER OUT
CHECK VALVE
INTELLIVALVE
VALVE
COLD WATER IN
HOT WATER
OUT TO POOL
COLD
WATER
IN
Figure 8.
