Pentair MT125 - Heater Electrical Schematic Ladder Diagram

460906 Rev. D 8/2020 MASTERTEMP 125 Pool and Spa Heater Installation and User’s Guide
41
Section 1. Installation Instructions

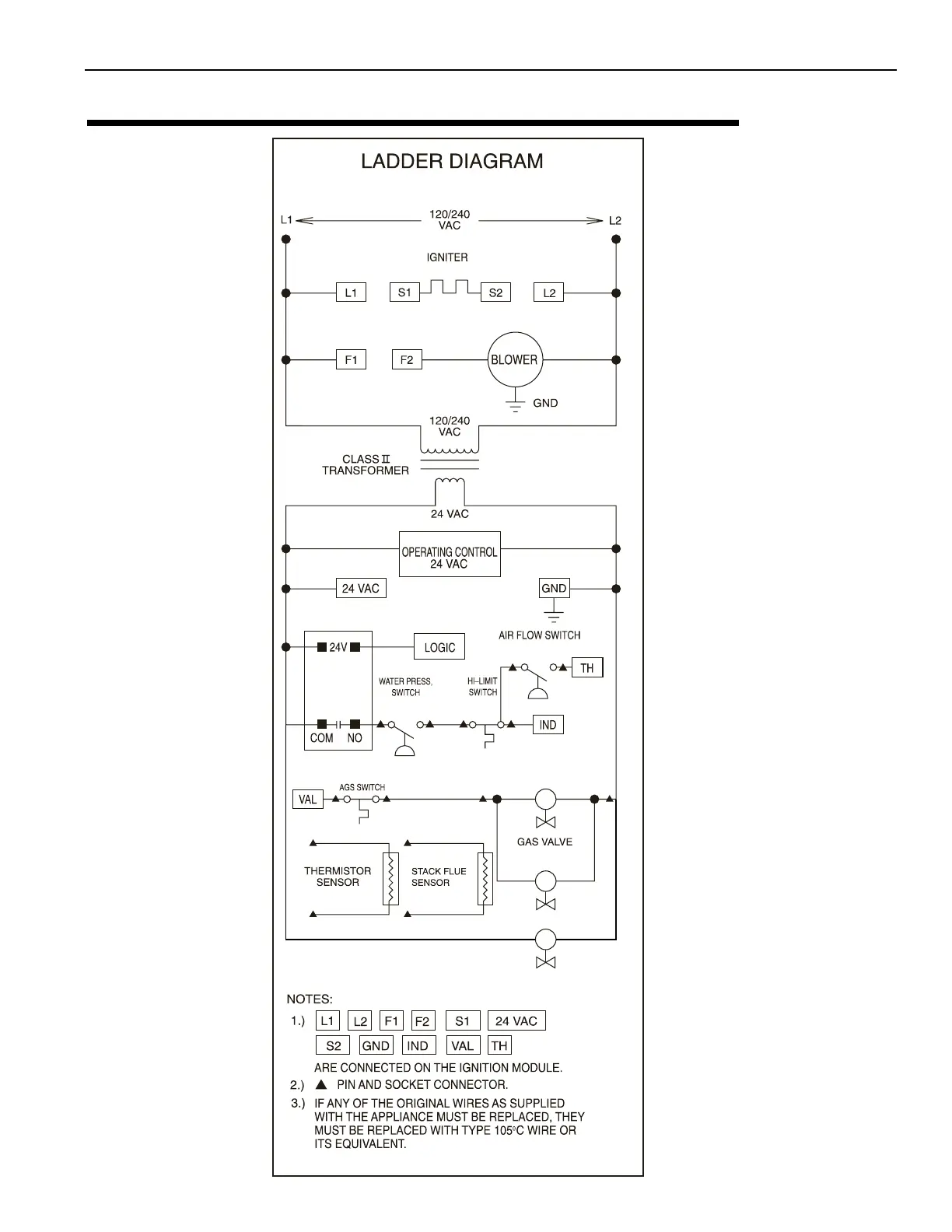

HEATER ELECTRICAL SCHEMATIC LADDER DIAGRAM
Figure 38.
BYPASS VALVE
4.)
EXTERNAL VALVE THAT NEEDS TO BE INSTALLED.
