PEP Modular Computers VMP2 - Serial Port Pinout; View of Underside of CP320-TR2 Module

CP320-TR2 (Optional) VMP2
Page F - 4 © 2002 PEP Modular Computers GmbH ID 24855, Rev. 02

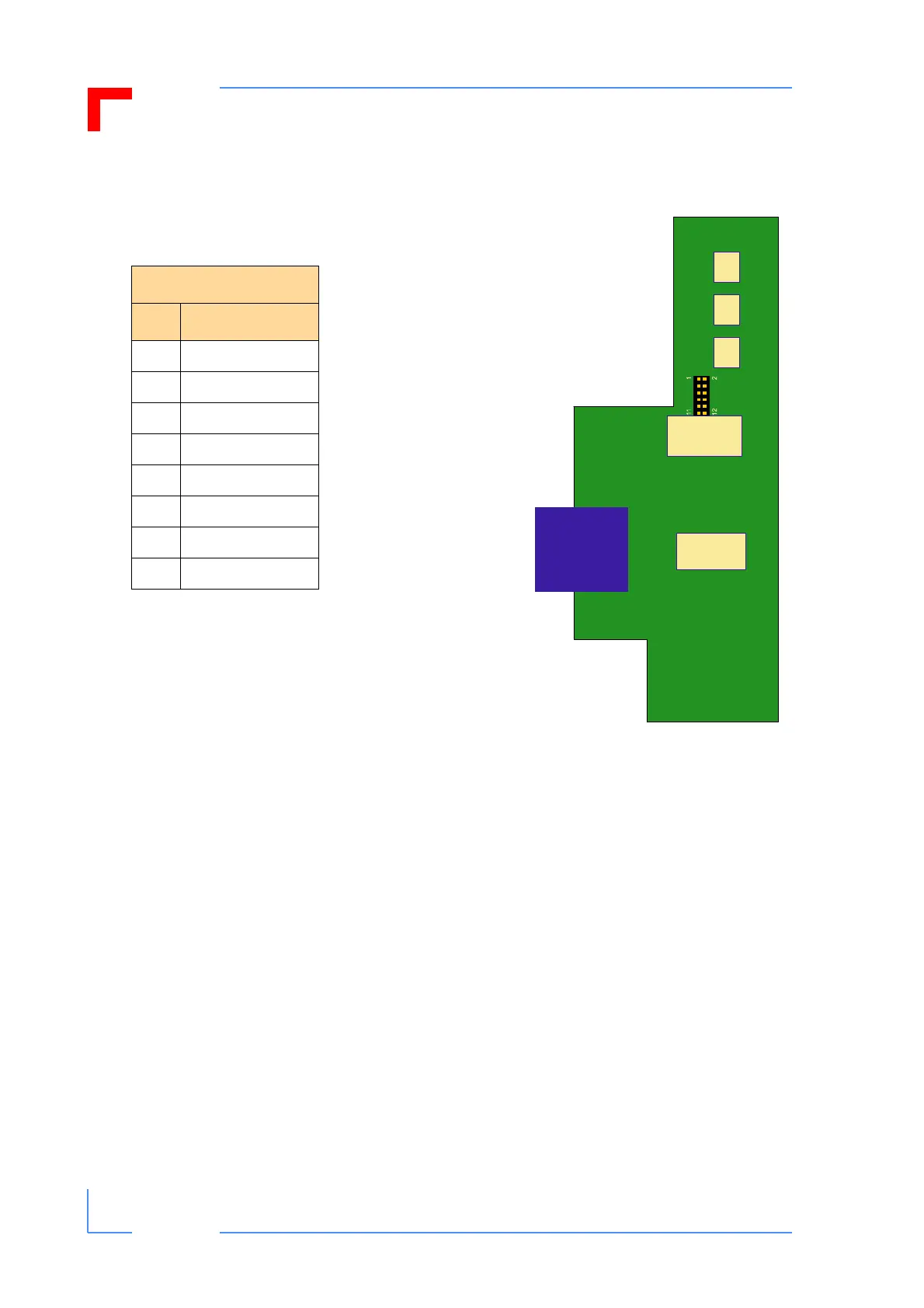

Figure F-1: View of Underside of
CP320-TR2 Module
Serial Port Pinout
Table F-1: Serial Port Pinout
RS232
Pin Signal
1
NC
2
RTS
3
ISO-GND
4
TxD
5
RxD
6
NC
7
CTS
8
DTR
Please note that
this diagram is
not to scale with
other board
diagrams
CON6
RJ45
(Serial)
CON3
