2. Functional Description
2.1 Functional Block Diagram

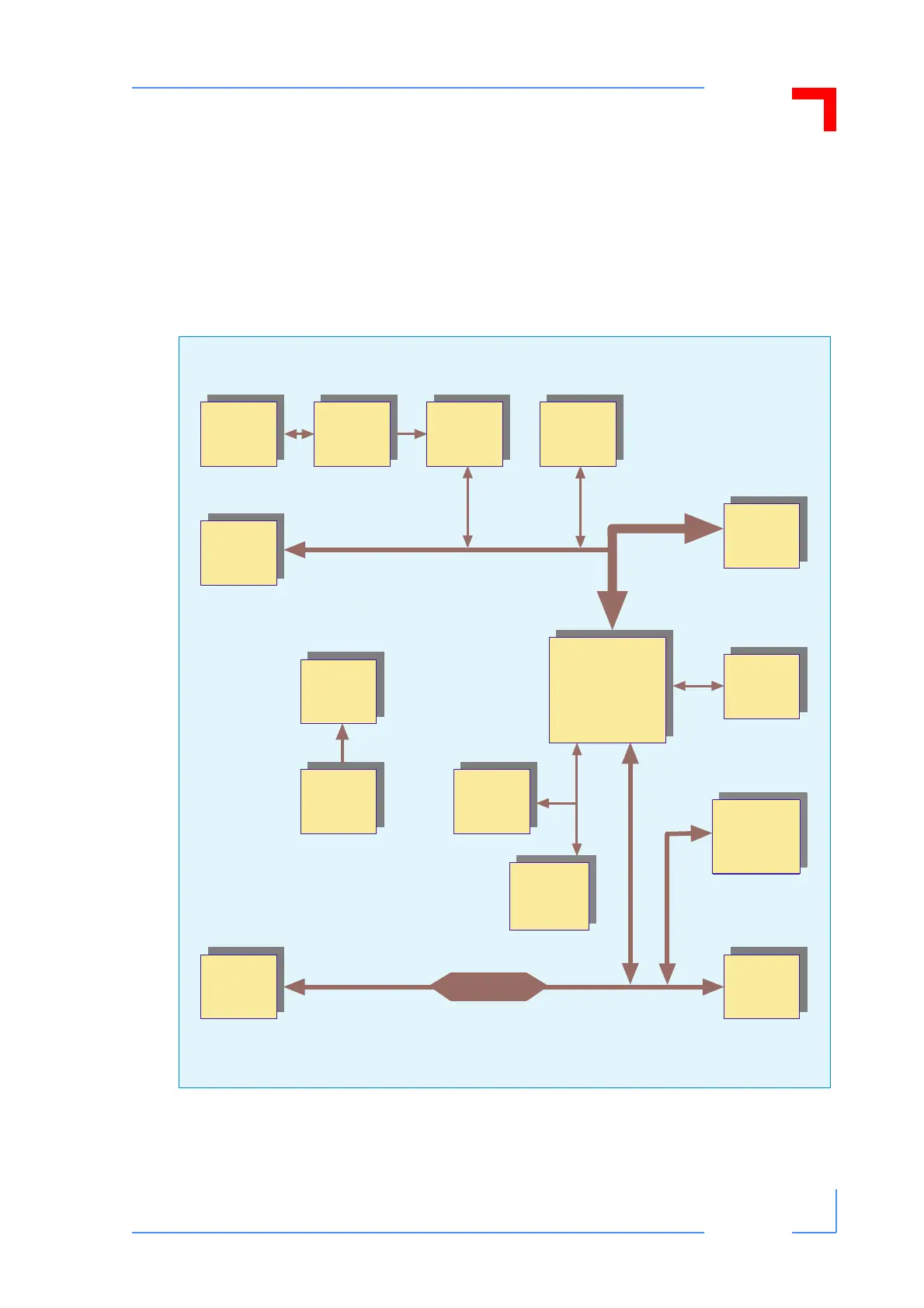

Figure 2-1: Functional Block Diagram
SERIAL
INTERFACE
2 16550
compatible
EEPROM
I2C
FAST
ETHERNET
82559ER
PUSH
BUTTONS/
LED’S
FLASH
2 4MB
RTC
M41T56
PCI
EXPANSION
CONNECTOR
VME
INTERFACE
Tundra
Universe II
DEBUG
JTAG/Test
interface
FLASH
SOCKET
DIP600,
<52kB
Port X (8 bit wide)
PCI Bus
Memory Bus
64-bit
RESET
GENERATION
POWER
SUPPLY
2 DC/DC
SYSTEM
LOGIC
Serial IRQ
(Registry
Watchdog)
SYSTEM
MEMORY
SDRAM
32 - 256 MB
CPU
Motorola
MPC 8245
200-332 MHz
