PEP Modular Computers VMP2 - PCI Expansion Interface and Connector Pinout; PCI Expansion Connector CON11

VMP2 Functional Description
ID 24855, Rev. 02 Page 2 - 13© 2002 PEP Modular Computers GmbH
2.5.4 PCI Expansion Interface and Connector Pinout

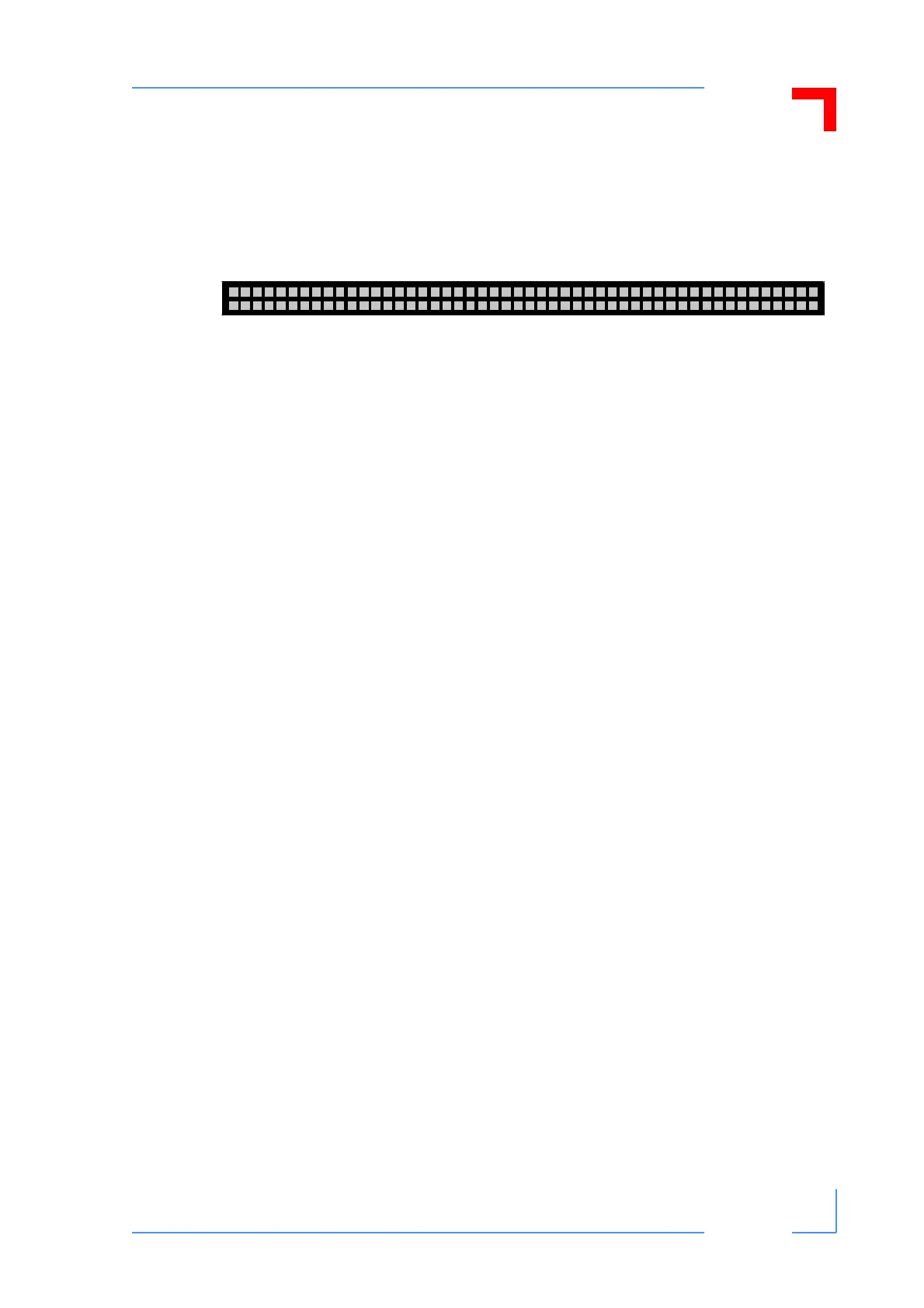

Figure 2-8: PCI Expansion Connector CON11
The PCI Expansion Connector provides the possibility to mount several transition
boards above the VMP2 for adding special functionality which is not provided on the
VMP2 main board or on the VME bus. All the PCI signals of the onboard PCI bus will be
routed to this connector, so that a complete PCI bus is provided on this connector. In
addition, almost the same number of ground and power pins (3.3V and 5V) as are on a
CPCI P1 or PMC connector are provided. Examples of transition boards are:
• PMC carrier
• PC-MIP carrier
• IO board with Graphic interface, second Ethernet interface, SCSI etc.
A table showing the pinout of the PCI Expansion Connector
appears on the following page.
1
100
99
2
PCI EXPANSION CONNECTORCON11
