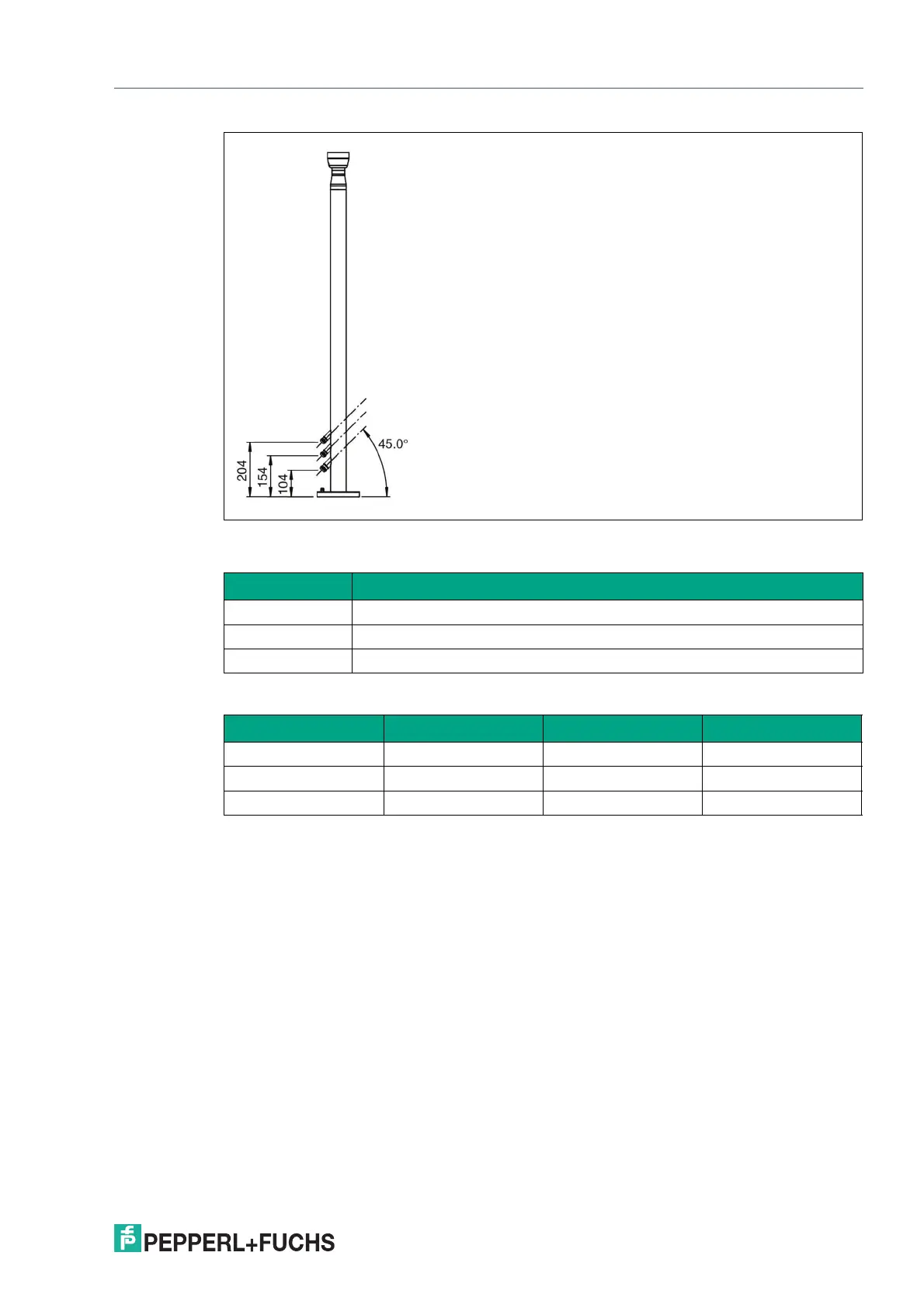

Figure 4.12
Pedestal with three Cable Glands
Opening/Wrench Size, Cable Diameter, and Torque
No. Opening size
1 M20
2 M16
3 M16
Wrench size Cable diameter To r q ue
M20 24 mm 7 .. 12 mm 10 Nm
M16 20 mm 3 ... 7 mm 5 Nm
M16 20 mm 6 ... 10 mm 5 Nm
