Mechanical Installation
5. Pull the cable through the pedestal so that 50 cm of the cable is hanging out of the top of the
pedestal.

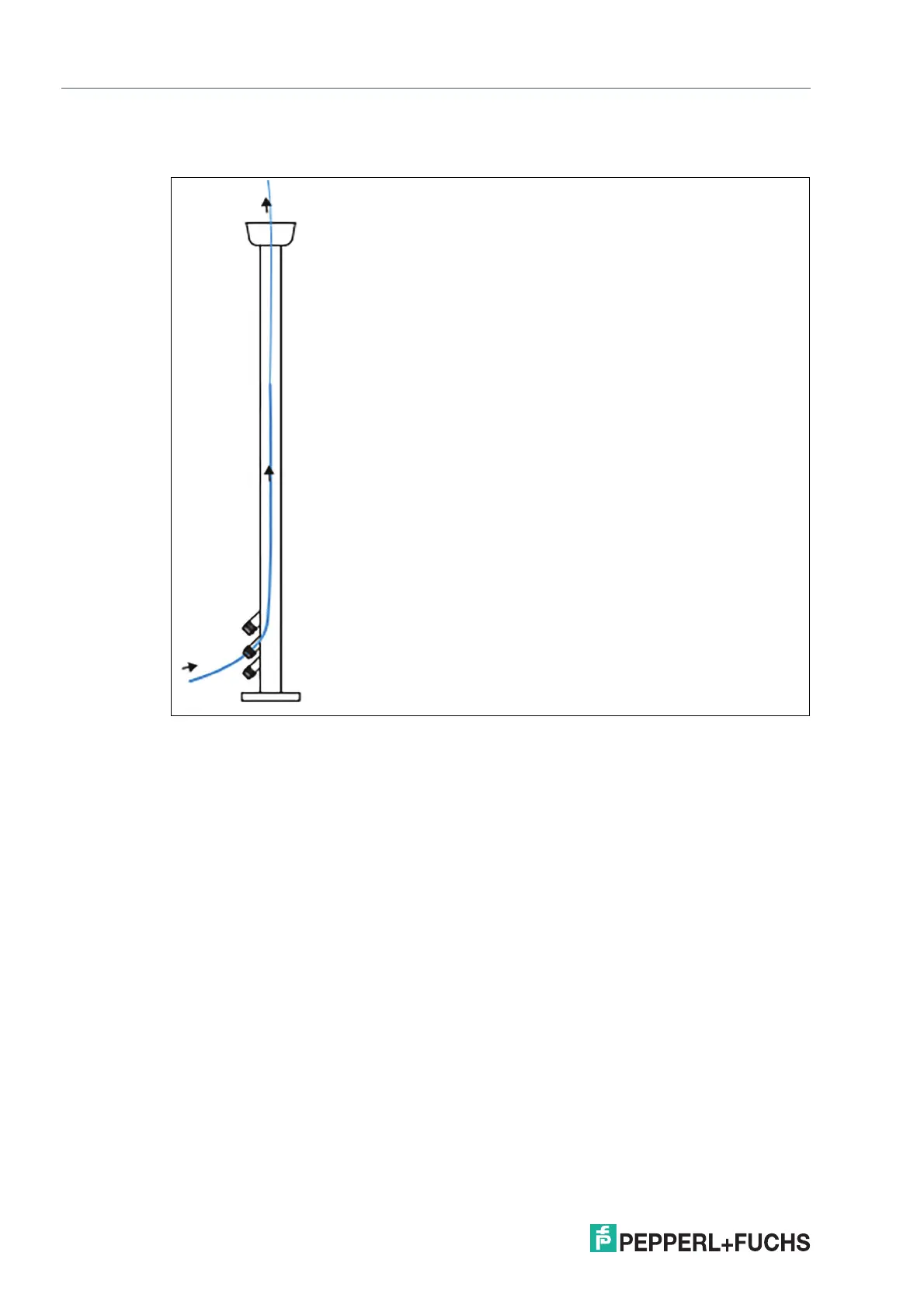

Figure 4.16
6. Repeat the preceding steps for each cable that must be routed through the pedestal.
7. Route the cable through the cable glands of the system housing.
