VisuNet FLX System
Mechanical Installation
2023-11
43

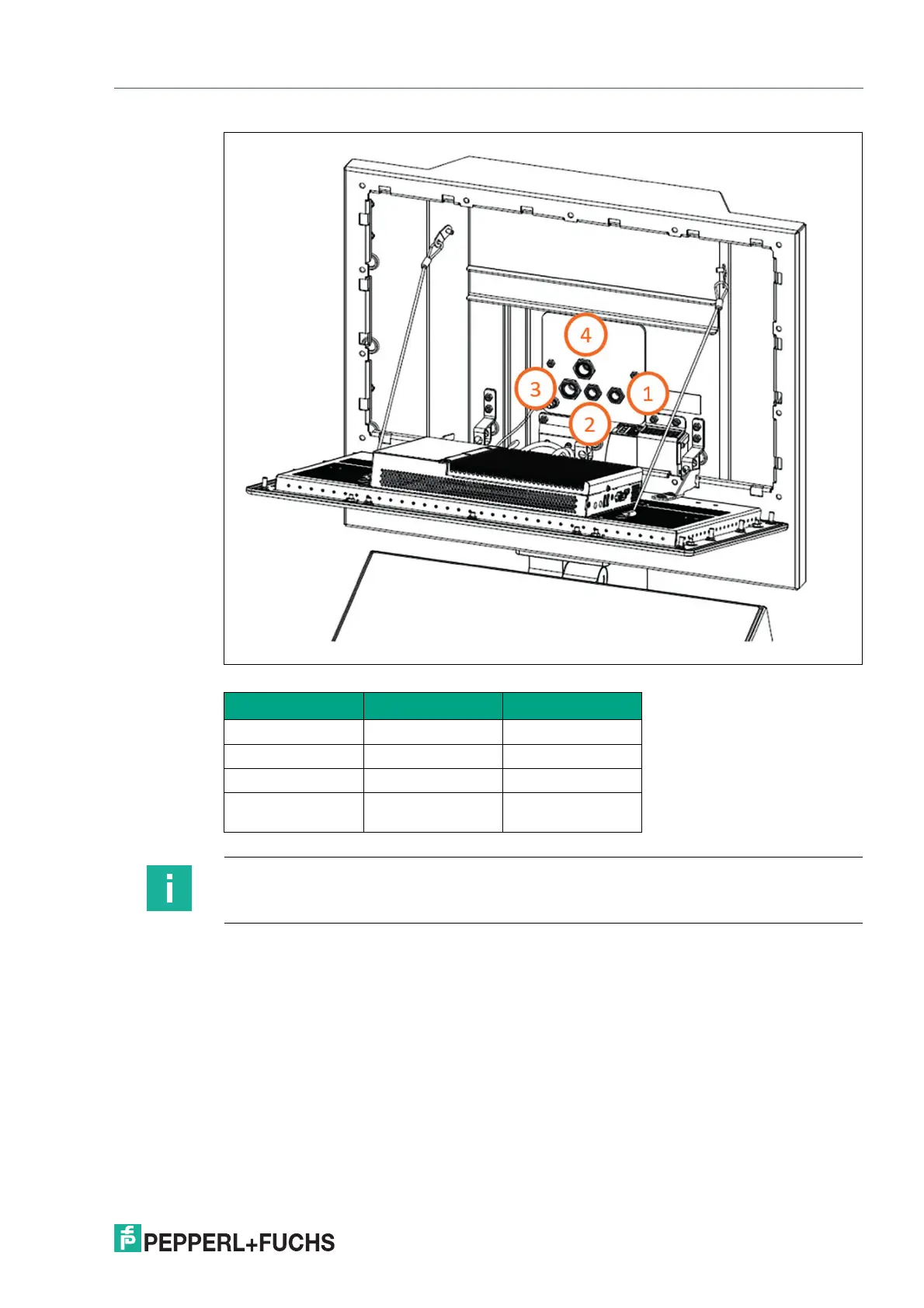

Figure 4.17
No. Description Size
1 Dual Ethernet M16 (Ø 6-10 mm)
2 Dual Ethernet M16 (Ø 3-7 mm)
3 Power M20 (Ø7-12mm)
4 Spare for additional
connection
M20 (Ø7-12mm)
Note
To get the cables through the cable glands, the insulation must be in place. Remove the
insulation only inside the housing.
