VisuNet FLX System
Mechanical Installation
2023-11
49

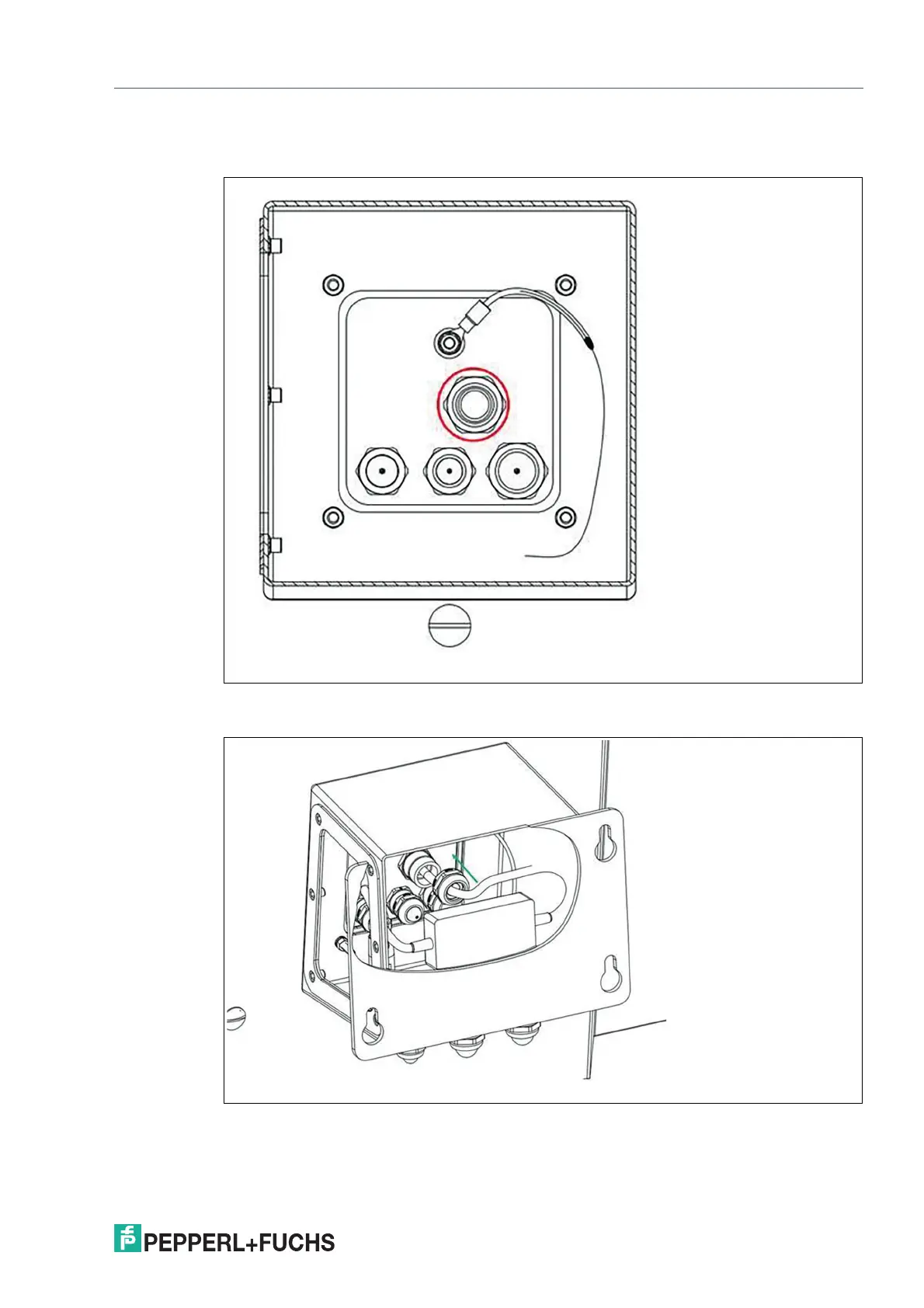

4. Remove cable gland No 4 (M20 Ø7-12 mm). By this point, the DPU should be in the open
position.
5. Fix the integrated cable gland of the supply cable in the section that has become free. Fix it with
a torque of 12 Nm.
