2023-11
50
VisuNet FLX System
Mechanical Installation

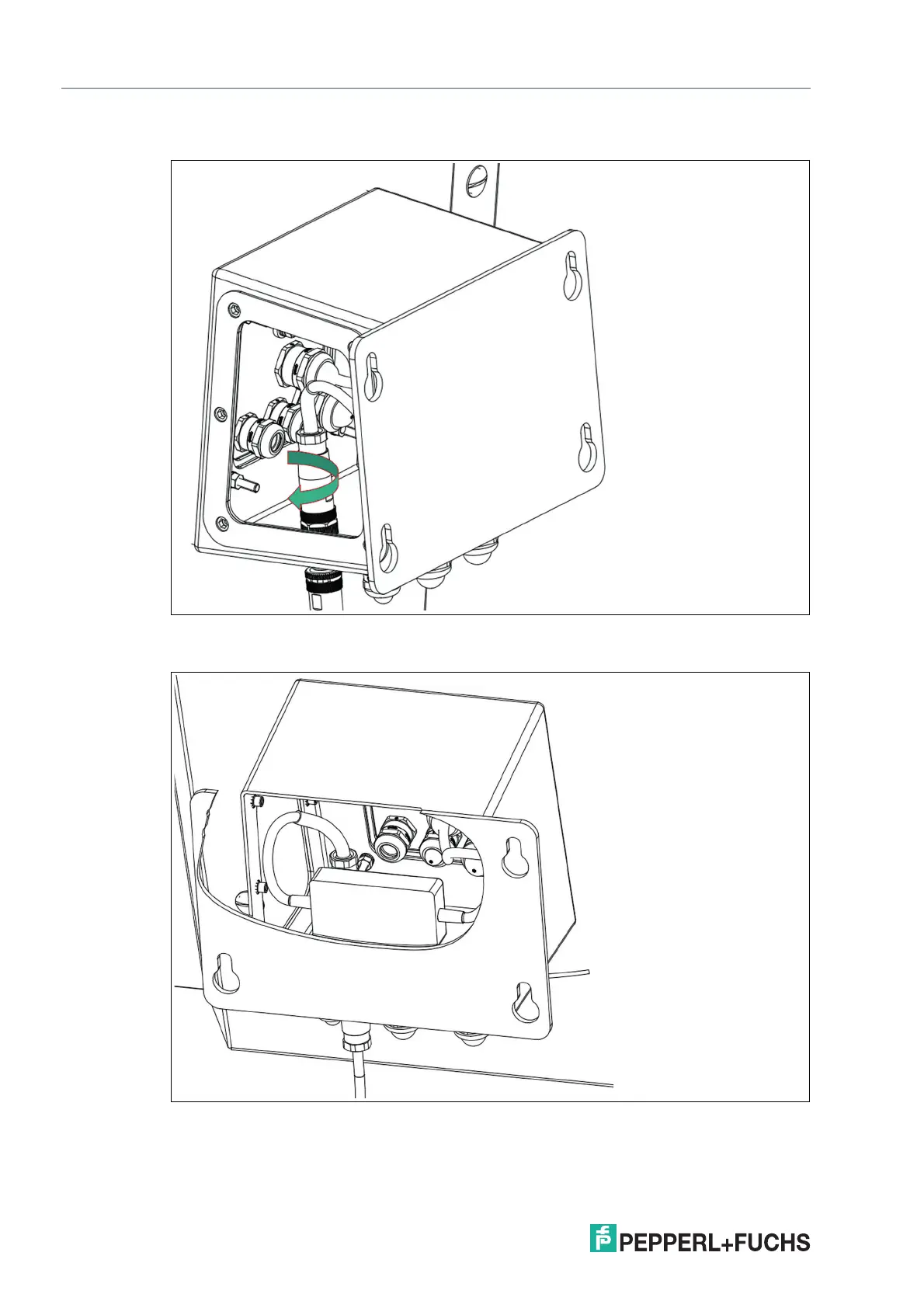

6. Connect the M12 plug of the supply cable to the connector in the adapter and tighten it firmly.
Figure 4.24
7. Bend the cable as shown in the following picture.
Figure 4.25
