Mechanical Installation

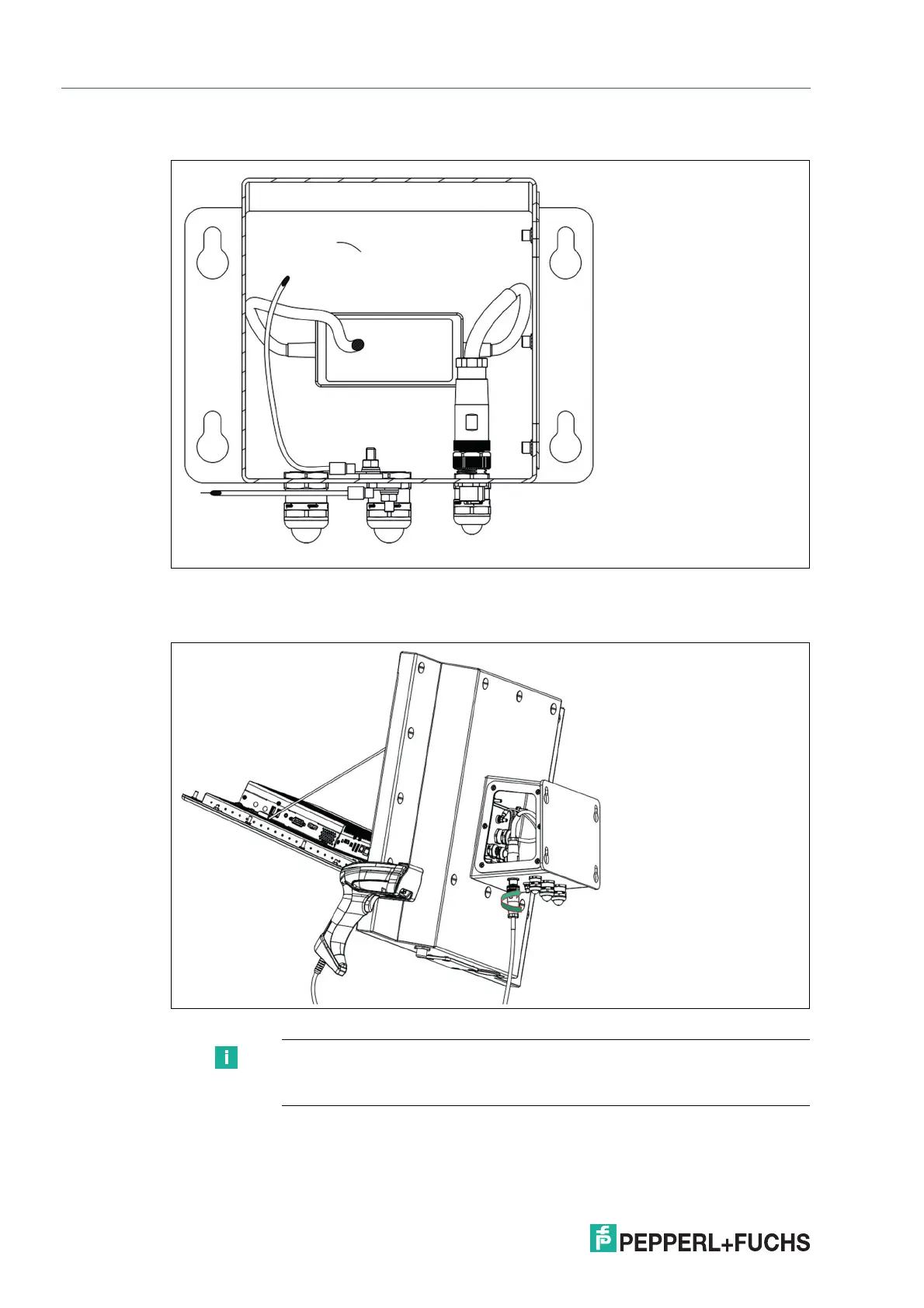

10. Position of barrier inside back surface of adapter:
Figure 4.27
11. Connect the plug of the barcode reader connection cable or base station connection cable to
the M12 connector of the adapter and tighten it firmly.
Figure 4.28
Note
The plug and socket are keyed. Match the key on the plug to the slot on the
socket before tightening:
