VisuNet FLX System
Mechanical Installation
4. Carefully fit pre-assembled top sunshield over top of outer housing and install and tighten the 4
screws to a torque of 4 Nm.

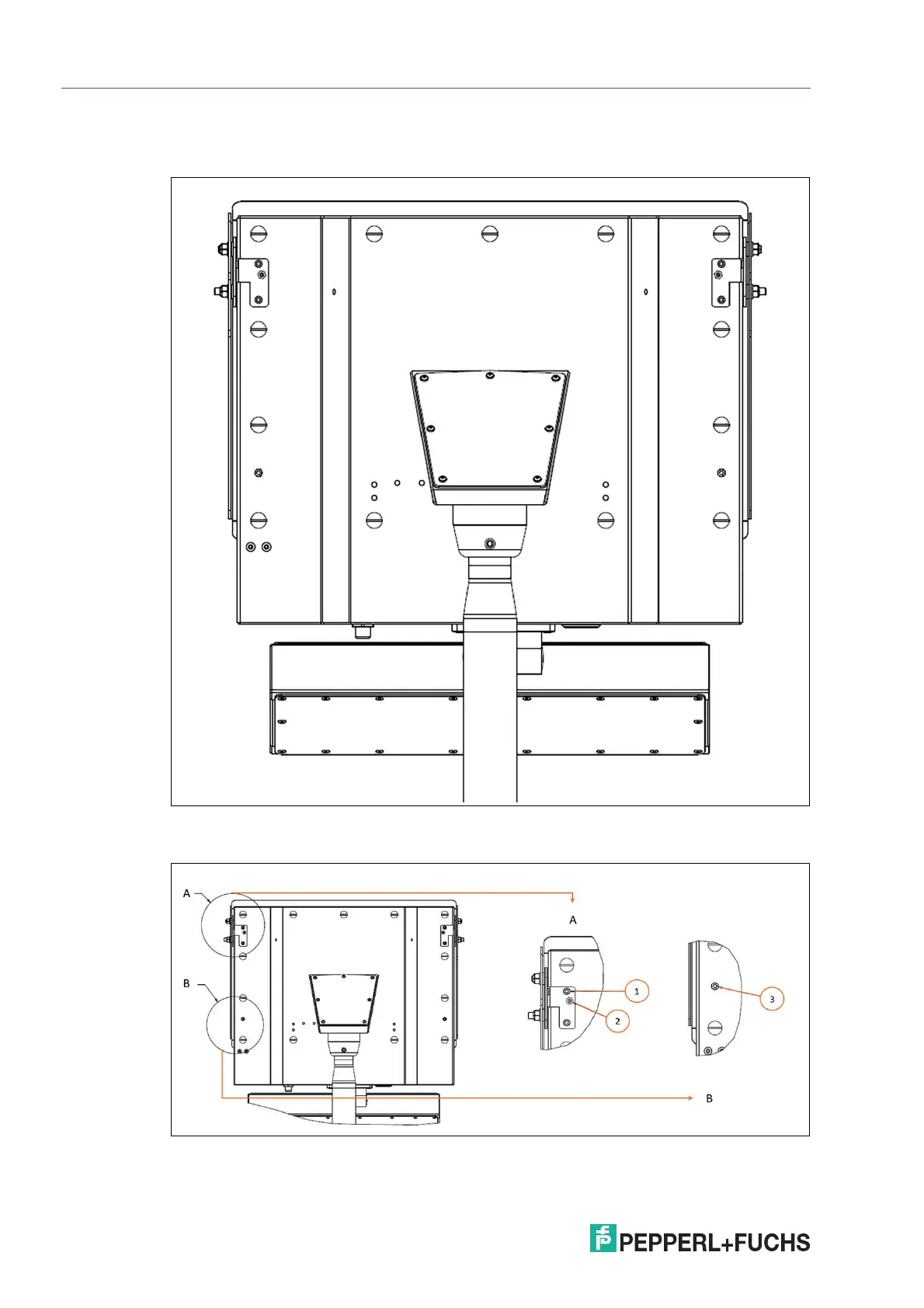

Figure 4.40
5. Install the 2 female-female spacers to mounting brackets and tighten to a torque of 3 Nm.
Figure 4.41
