VisuNet FLX System
Mechanical Installation
2023-11
63
6. Install the 2 female-male spacers to outer housing and tighten to a torque of 4 Nm.
7. Install the 4 screws onto spacers leaving a gap more than the thickness of the back shield.

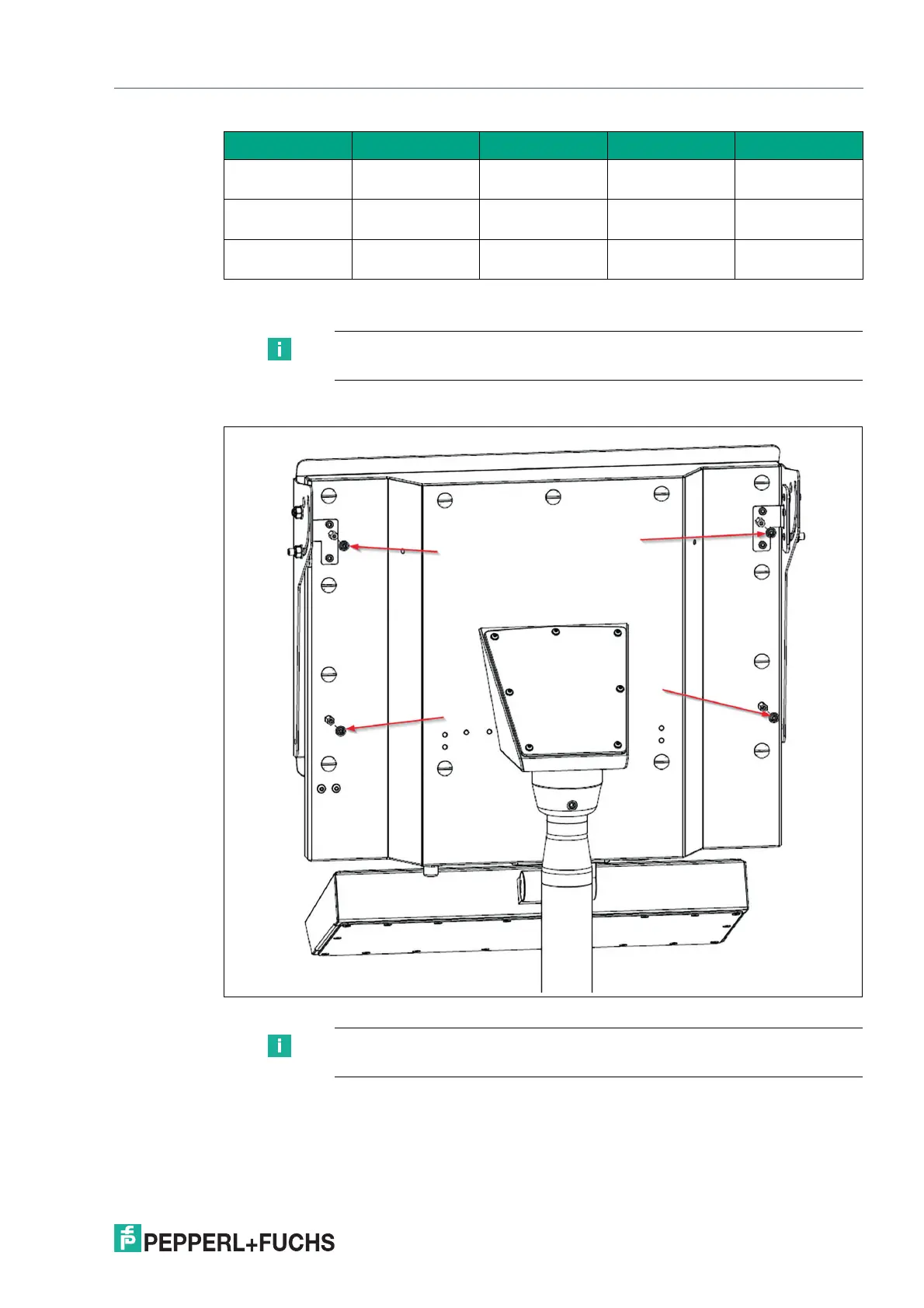

Figure 4.42
Item No. Part-Nr. QTY Description To r q u e (N m )
1 112373 4 M5x12 Socket
Head Cap Screw
4
2 70171760 2 M5x15mm, F-F
Space
3
3 70171761 2 M5x15mm, M-F
Spacer
4
Note
These spacers are only used for the back shield option.
Note
If side shields will be installed leave out the bottom 2 screws.
To Next Page
