Mechanical Installation
8. Align back shield with the 4 screws with the keyhole slots and set into place.

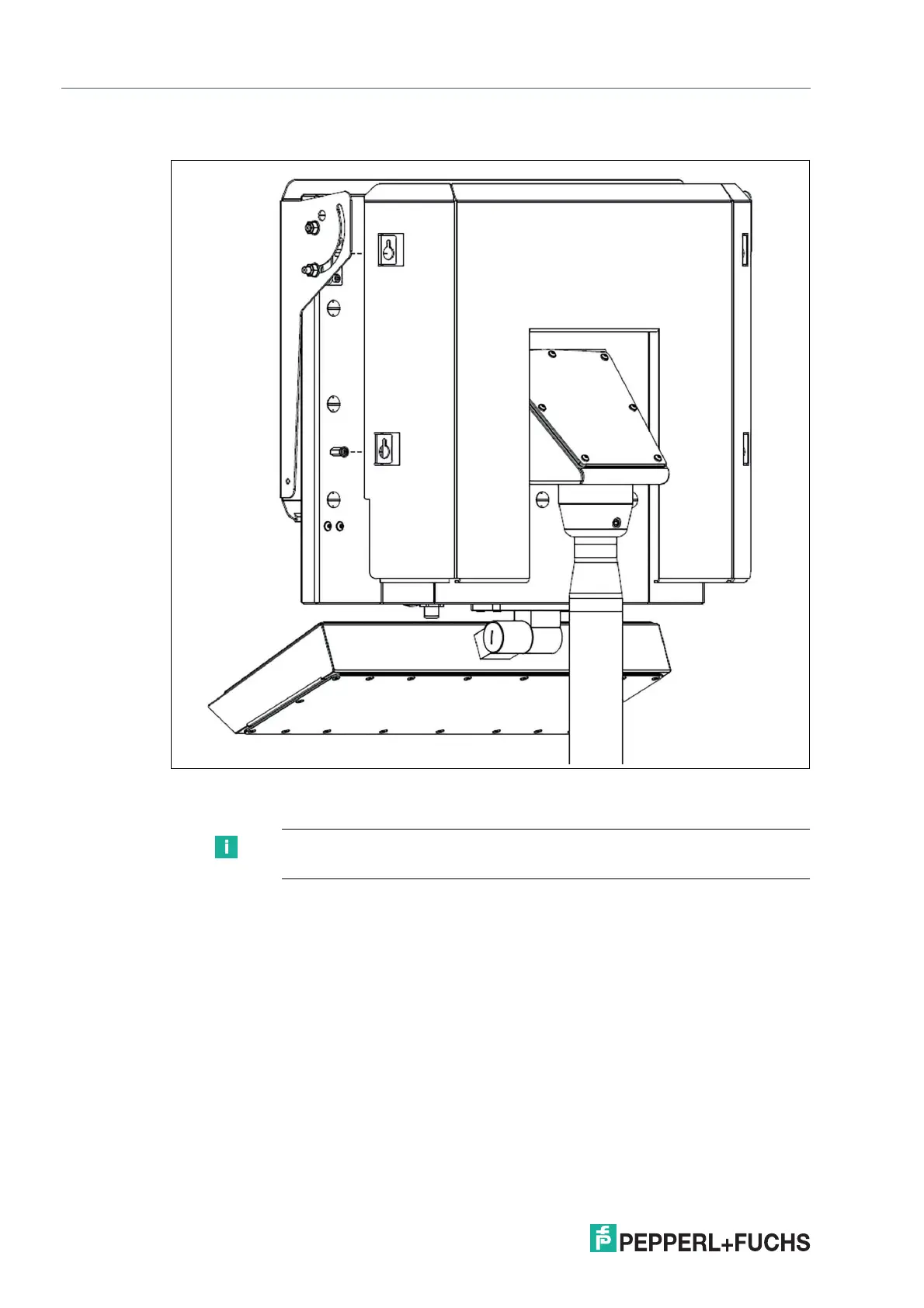

Figure 4.43
9. Tighten the 4 screws to a torque of 2.3 Nm.
10. Rotate sunshield top into desired operating position and tighten the 2 M8 nuts in slotted holes
to a torque of 8 Nm.
Note
If side shields will be installed skip the next step.
