VisuNet FLX System
Installing Peripherals

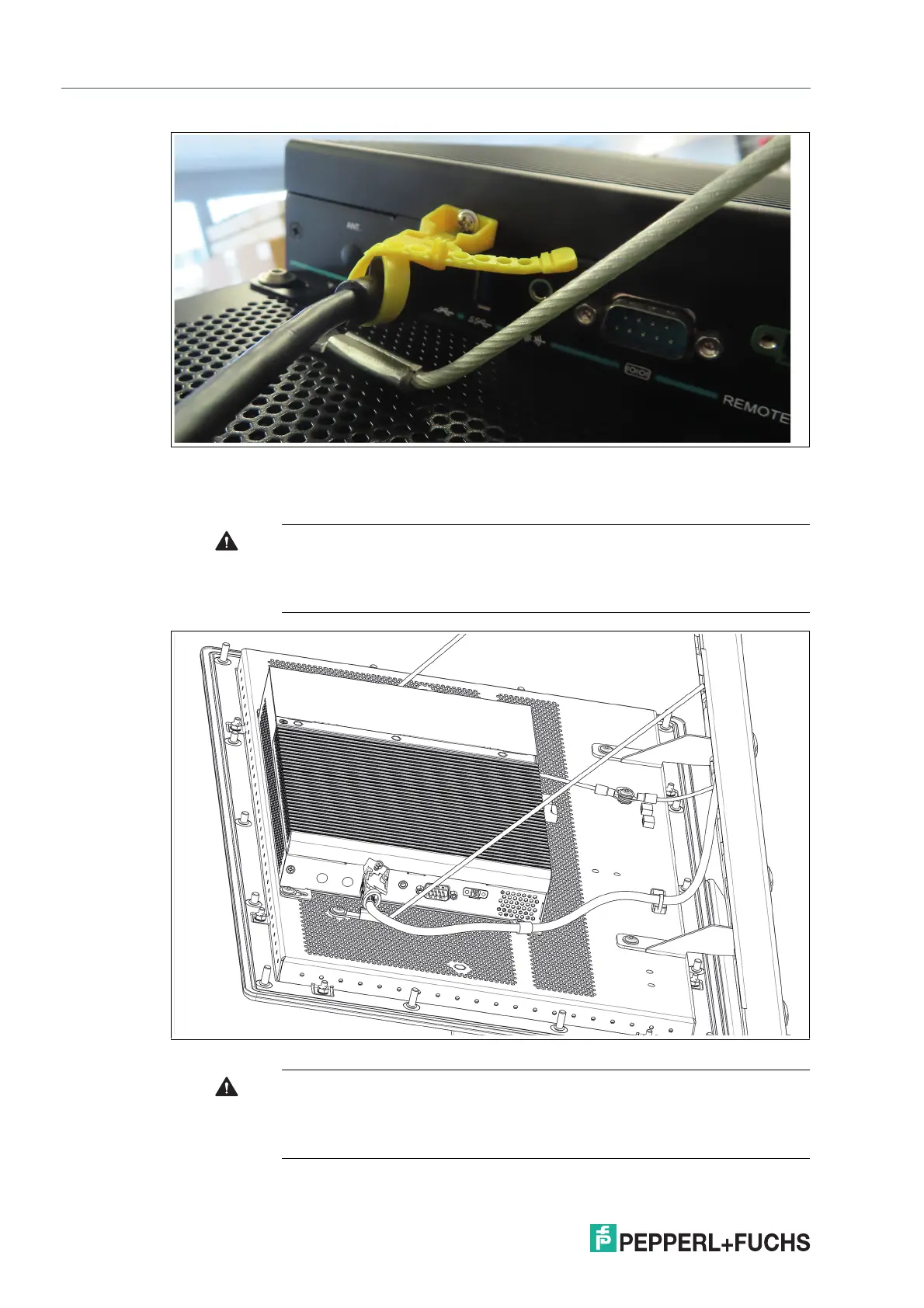

Figure 7.19
9. Use the cable clamp of the KIT-IDM-Z2-USB-N0 and cable ties to route the supply cable as
shown in the following graph.
Figure 7.20
Warning!
Bending radius must be maintained. The maximum allowed bending radius is
80°.
Warning!
Risk of cable damage!
The cables may become damaged during the closing process. Properly fasten
all cables before closing the housing.
