Troubleshooting Section
g02186434

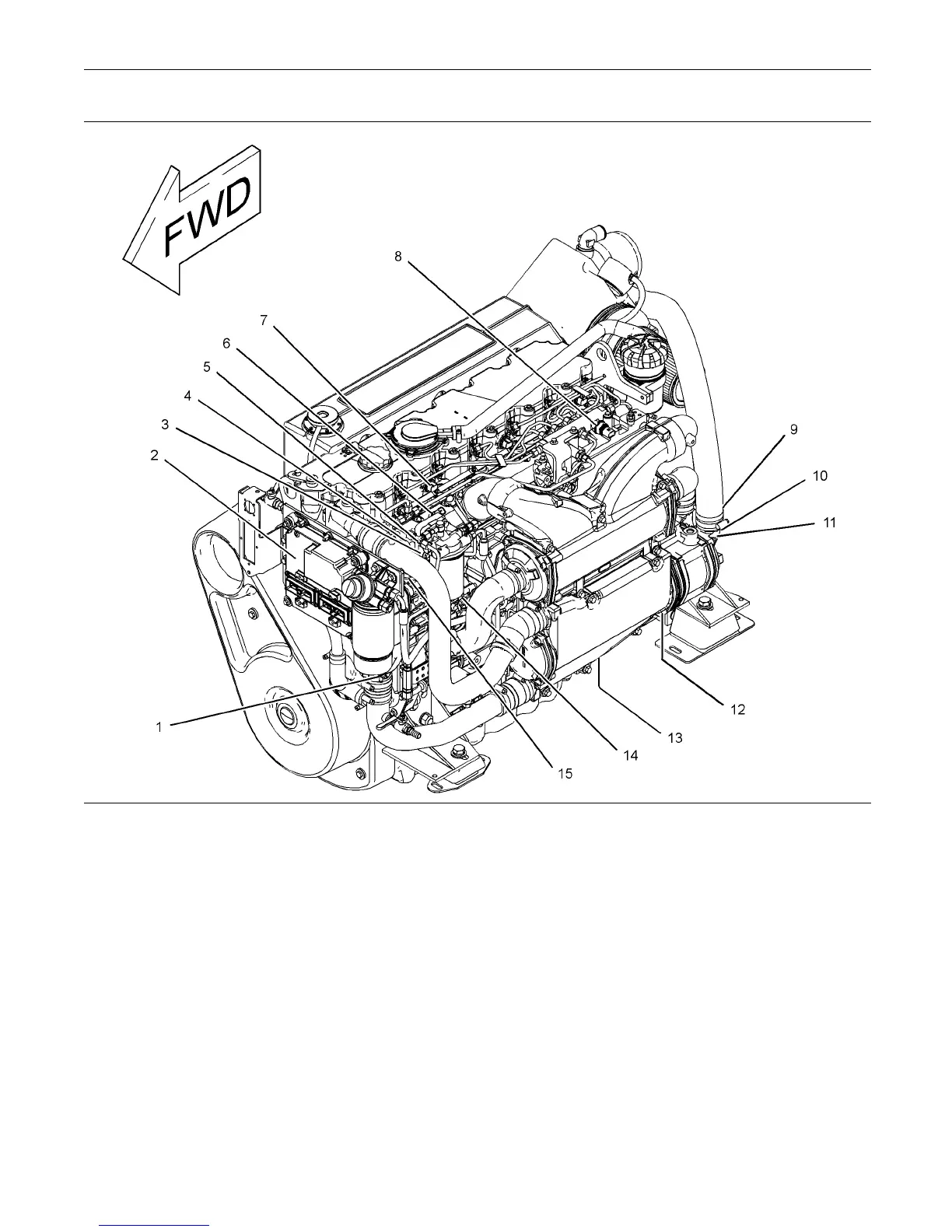

Illustration 5
Typical exam ple of the sensor locations on the engine
(1) Water in fuel sen sor
(2) Electronic Control Module (ECM)
(3) Fuel supply pressure sensor (if equipped)
(4) Coolant temperature sensor
(5) Fuel supply temperature sensor (if
equipped)
(6) Intake manifold air temperature sensor
(7) Intake m anifold pressure sensor
(8) Fuel rail pressure S ensor
(9) Fuel level sensor
(10) Transmission oil pressure sens or (if
equipped)
(11) Transmission oil temperature sensor (if
equipped)
(12) Primary sp eed/timing sens or
(13) Oil pressure sensor
(14) Secondary speed/timing sensor
(15) Solenoid for th e fuel rail pu mp
Note: If equipped, the wastegate regulator is installed
on the right side of the engine.
