Cabling Guide
81234567

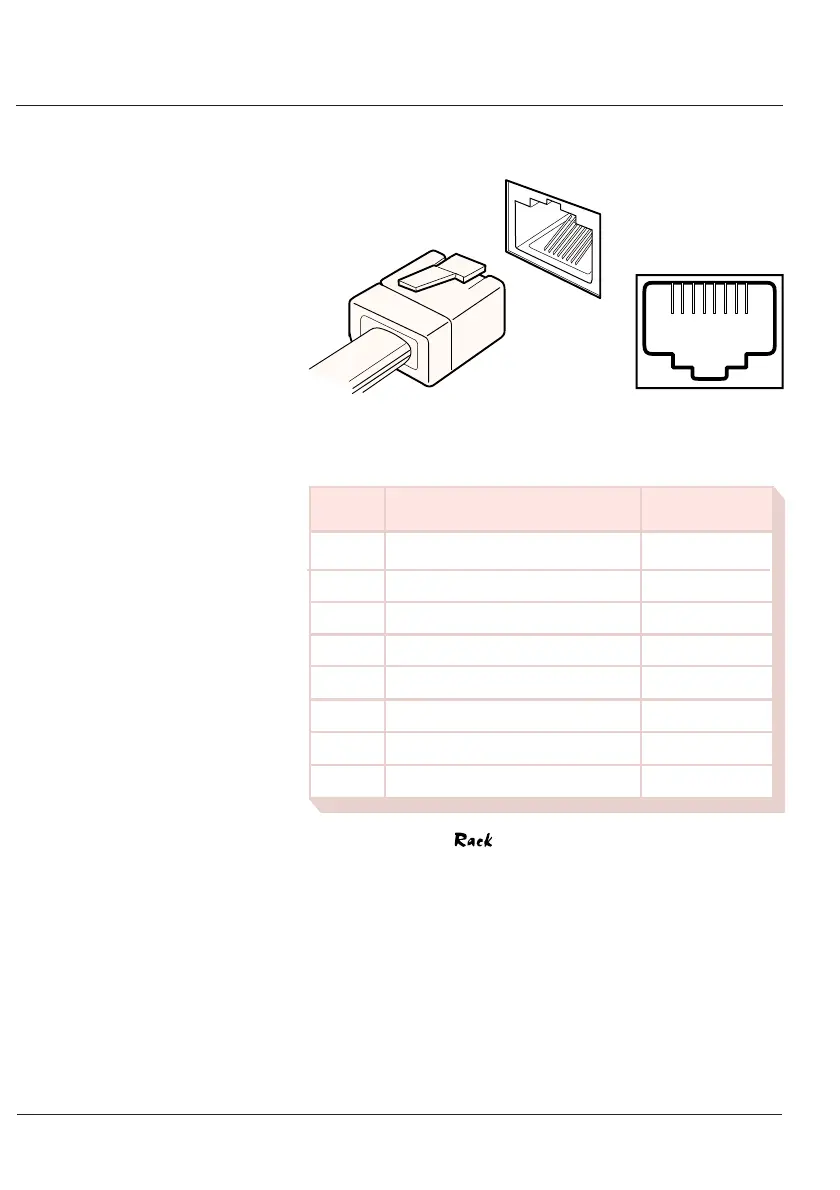

Figure 60: IOLAN+ RJ45 Connector.
1
2
3
4
5
6
7
8
Data carrier detect
Request to send
Data set ready
Transmitted data
Received data
Signal Ground
Clear to send
Data terminal ready
(109)
(105)
(107)
(103)
(104)
(102)
(106)
(108)
Pin
Input
Output
Input
Output
Input
Ref
Input
Output
DirectionDescription
Figure 61: IOLAN+ , IOLAN+ 102/104 RJ45
RS-232 Pinouts (DTE)
