C.3 Standard
Terminal/PC
Cables
2
3
7
IOLAN+
DTE
(DB25)
Terminal
DTE
(DB25)
2
3
7
TXD
RXD
Gnd
TXD
RXD
Gnd

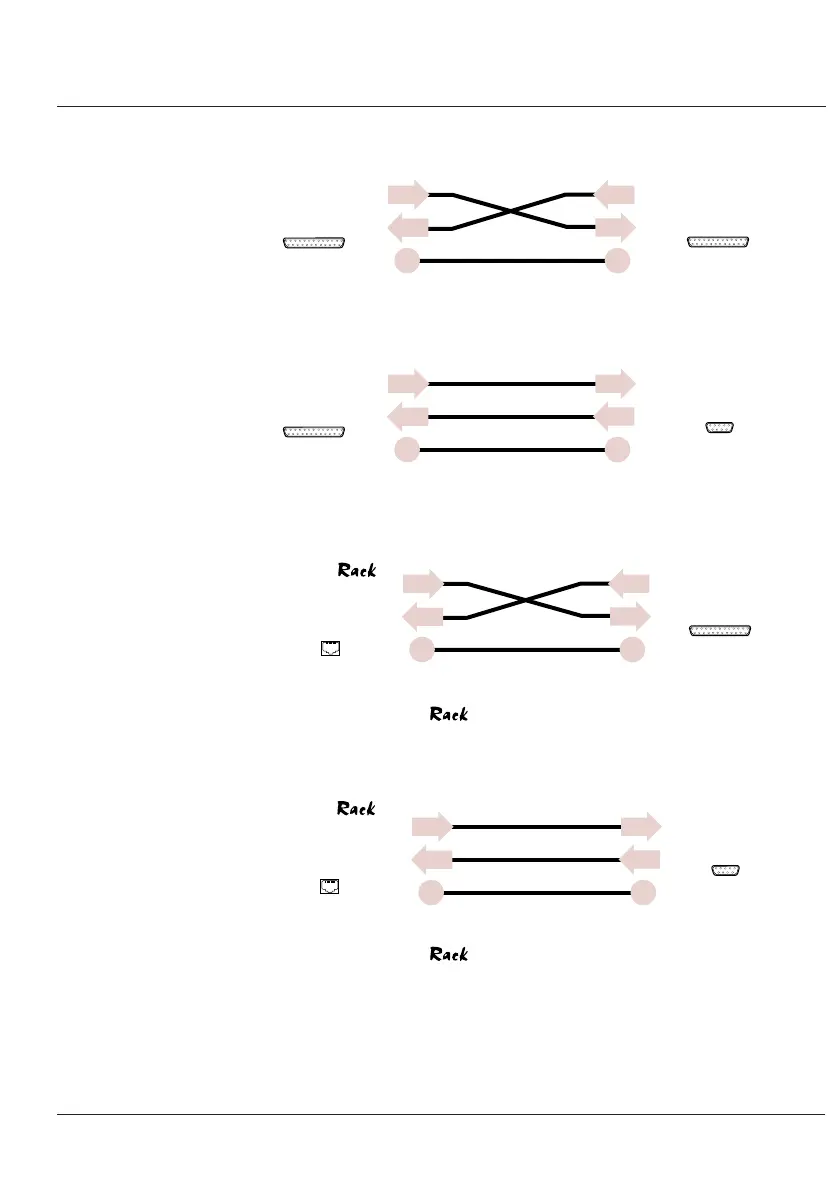

Figure 66: IOLAN+ Standard Terminal/PC Cable .
2
3
5
IOLAN+
DTE
(DB25)
PC
DTE
(DB9)
2
3
7
TXD
RXD
Gnd
RXD
TXD
Gnd
Figure 67: IOLAN+ PC Cable.
Terminal
DTE
(DB25)
IOLAN+
IOLAN+
102/104
DTE
(RJ45)
2
3
7
4
5
6
TXD
RXD
Gnd
TXD
RXD
Gnd
Figure 68: IOLAN+ , IOLAN+ 102/104
Standard Terminal/PC Cable.
2
3
5
PC
DTE
(DB9)
4
5
6
TXD
RXD
Gnd
RXD
TXD
Gnd
IOLAN+
IOLAN+
102/104
DTE
(RJ45)
Figure 69: IOLAN+ , IOLAN+ 102/104 PC Cable.
