Perle IOLAN + Rack - Iolan+; Pinouts (DTE); IOLAN+ RJ-45 Connector

134
IOLAN
+
- User and Administration Guide
RS-422
81234567

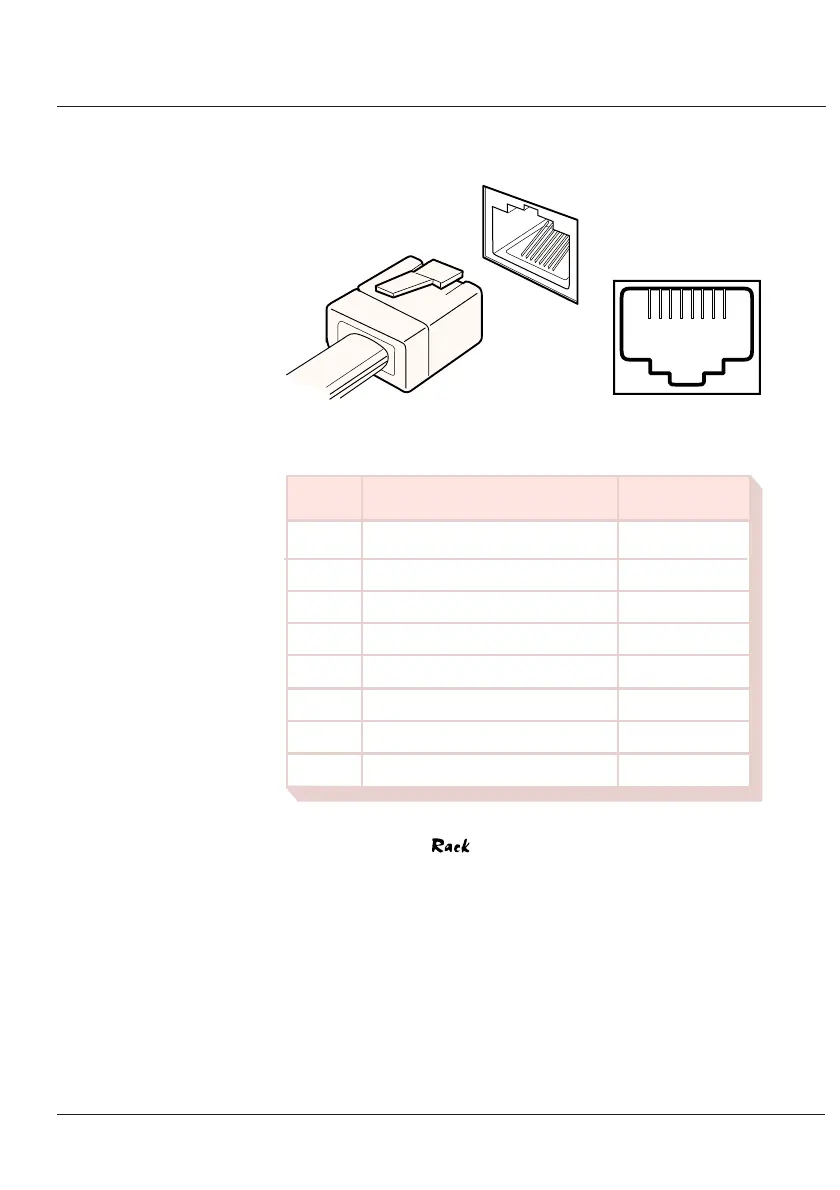

Figure 62: IOLAN+ RJ45 Connector.
1
2
3
4
5
6
7
8
No connection
Signal Ground
Received data A
Transmitted data A
Transmitted data B
Received data B
No Connection
Signal Ground
Pin
Input
Output
Output
Input
DirectionDescription
Figure 63: IOLAN+ , IOLAN+ 102/104 RJ45
RS-422 Pinouts (DTE)
