Permalert PAL-AT AT30C - Page 24

PAL-AT Installation Manual
24
4. Pull ports may also be used for periodic testing. If so, a short length of sensor cable (minimum 5’
- AGW-Gold, 15’ – TFH/TFH-Gold) with connectors should be installed in the pull port during the initial
setup. It is used as a test piece and can be replaced if needed after testing without setting up the
cable string again.

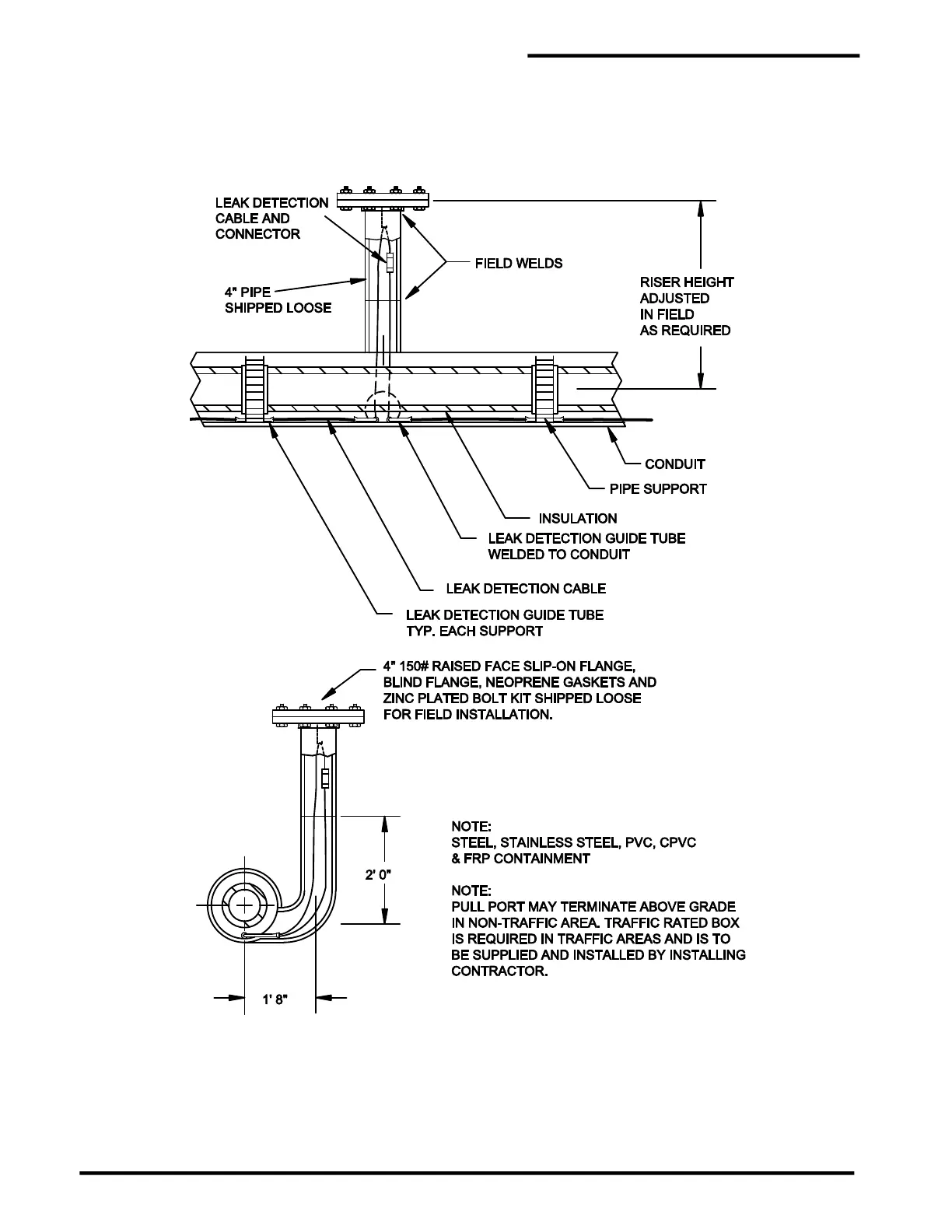

Figure 5-1
Detail of Pulling Point
