PAL-AT Installation Manual
59

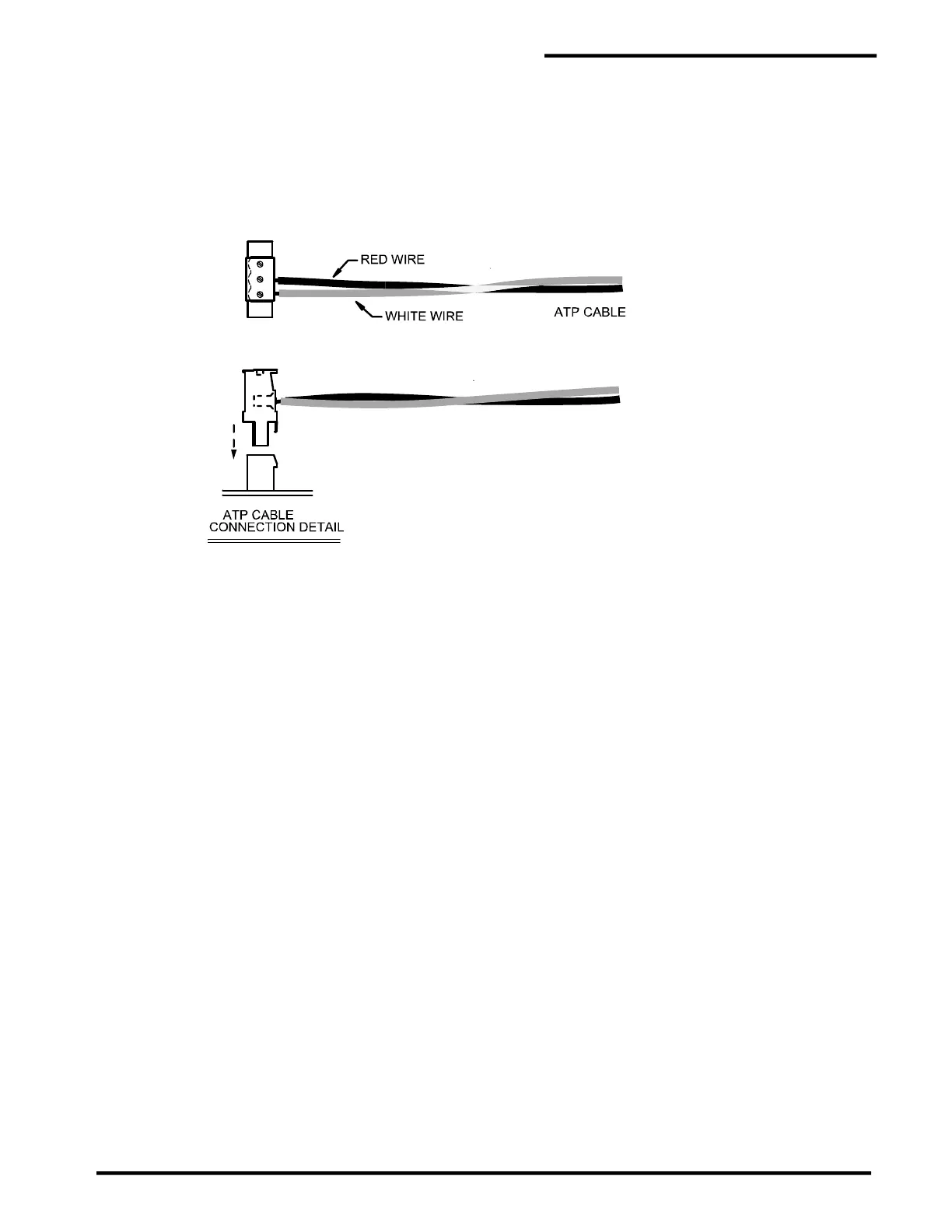

8.5.4 ATP Cable Connection at PAL-AT
The ATP cable uses two of the three cable plug terminals as shown below. Strip 3/8” [10mm] of insulation
from the end of the red and white wires. Insert the red wire into the center terminal and the white wire into
either of the side terminals of the cable plug and tighten as shown. Before connecting the plug, route
the excess cable in the enclosure so there will not be excessive strain or twisting at the terminals.
Insert the plug into the appropriate receptacle as shown. When removing the cable, grip the plug and pull
it straight out of the receptacle. Note the plug and receptacle are polarized so they can only be
connected one way.
