PAL-AT Installation Manual
78
10.9 End of Run Termination
Install a NEMA 4X [IP66] junction box near the end of the pipe. Electrical conduit should be used to protect
the wire if the box is more than a few inches from the pipe end seal. The ATP cable from the pipe should
be spliced to 50 ft [15 m] of ATP cable that is coiled in the junction box (100 ft [30 m] is required if the cable
length is greater than 3300 ft [1000 m]). Make sure the ATP cable remains twisted. The splices to the red
and white wires should be staggered and encapsulated with shrink tubing as described previously.

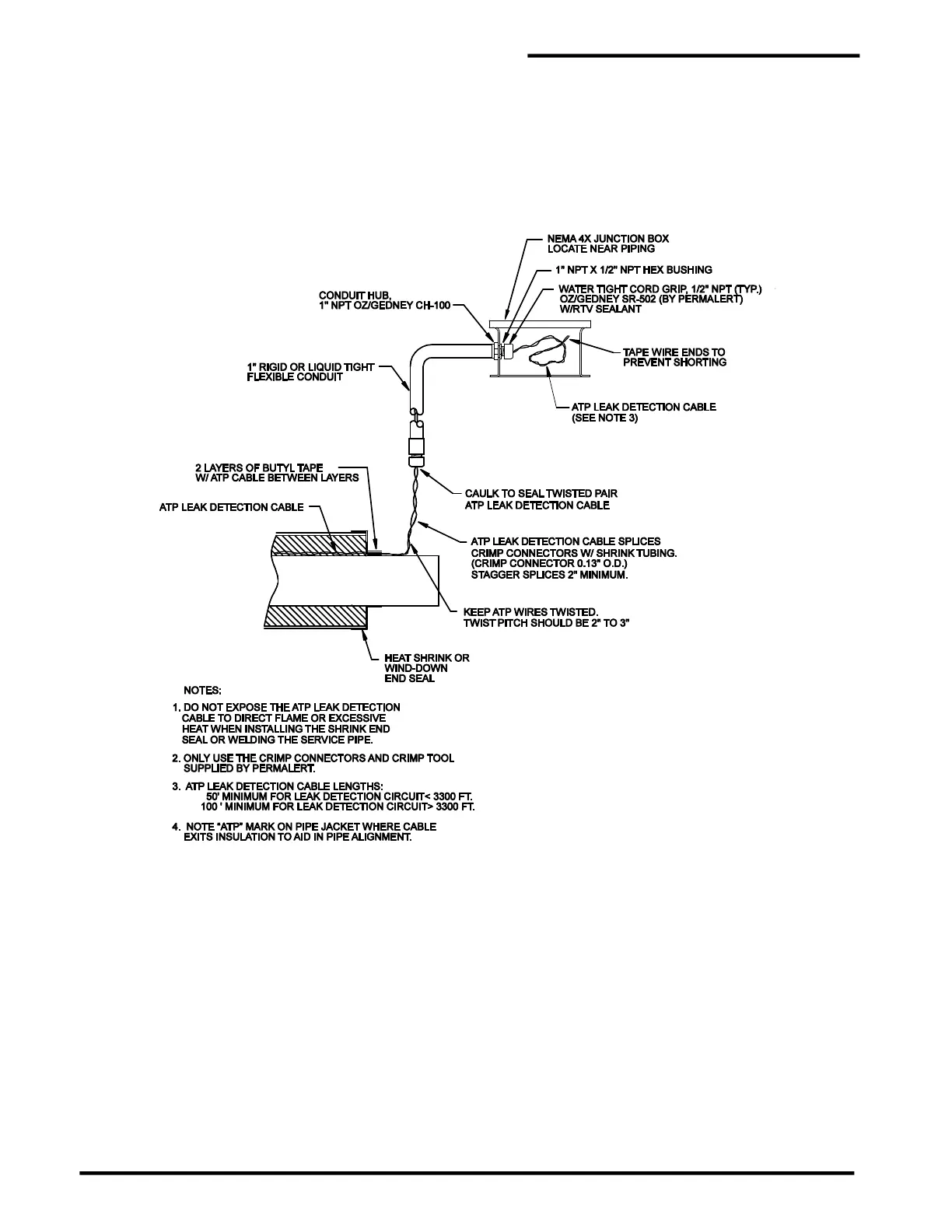

Figure 10-4
ATP Cable End of Run Detail
