10.8 ATP Cable at Tee Connections
Two lengths of ATP cable are used on branch lines and tees (see figures 10-2 and 10-3). Both cables are
typically at the 12 o’clock, position separated 2” - 3” apart. The ATP cable from the preceding section
before a tee is connected to the ATP cable using the procedure described above. At the end of the branch,
the two cables are spliced together as shown.
The return length of ATP cable from the end of the branch is spliced at the tee to the appropriate ATP
cable as shown below using the standard procedure.
An optional second ATP cable may be supplied as a spare or to make all sections available for branch
installation.

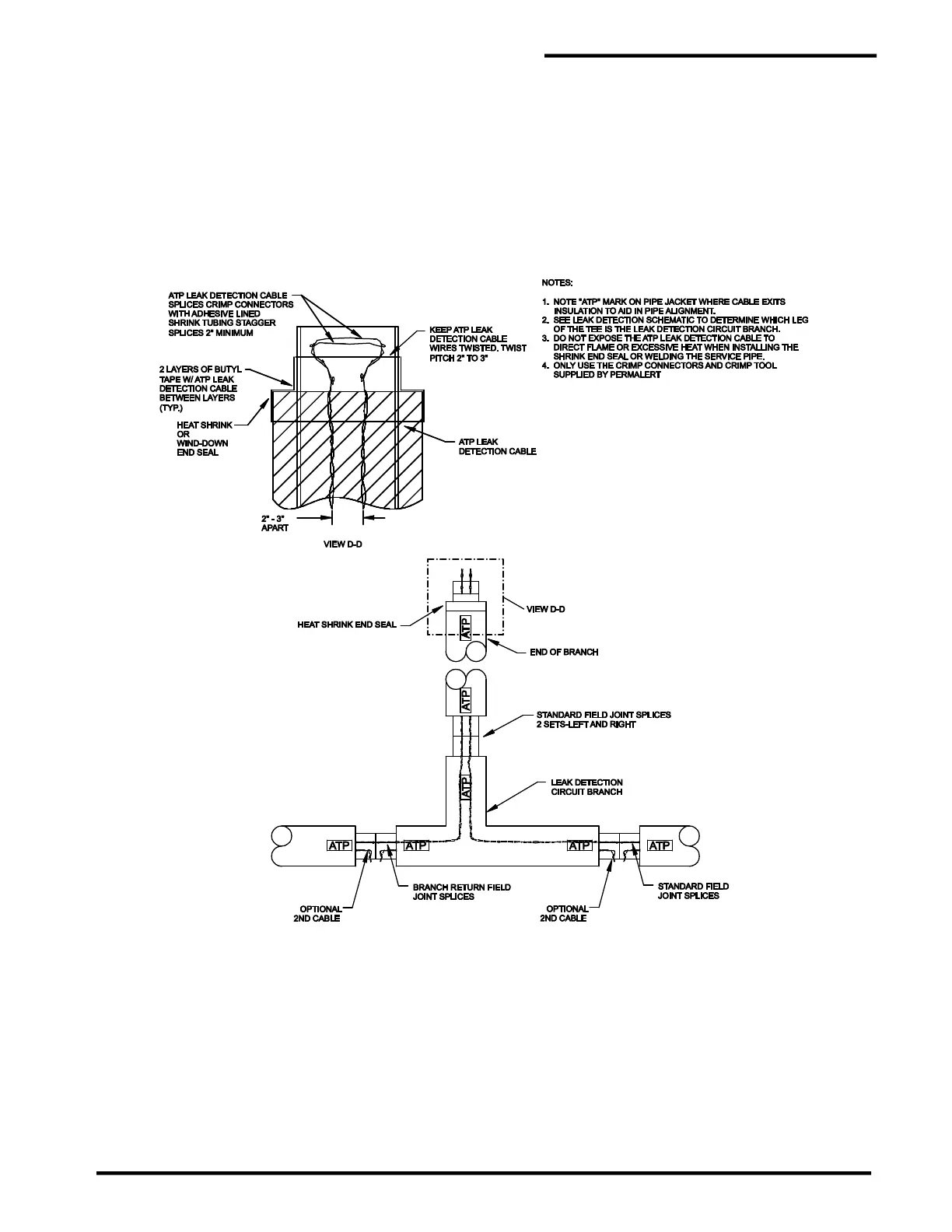

Figure 10-3
ATP Cable at Tee and End of Branch
