PAL-AT Installation Manual
70
9.6 Probe Tests

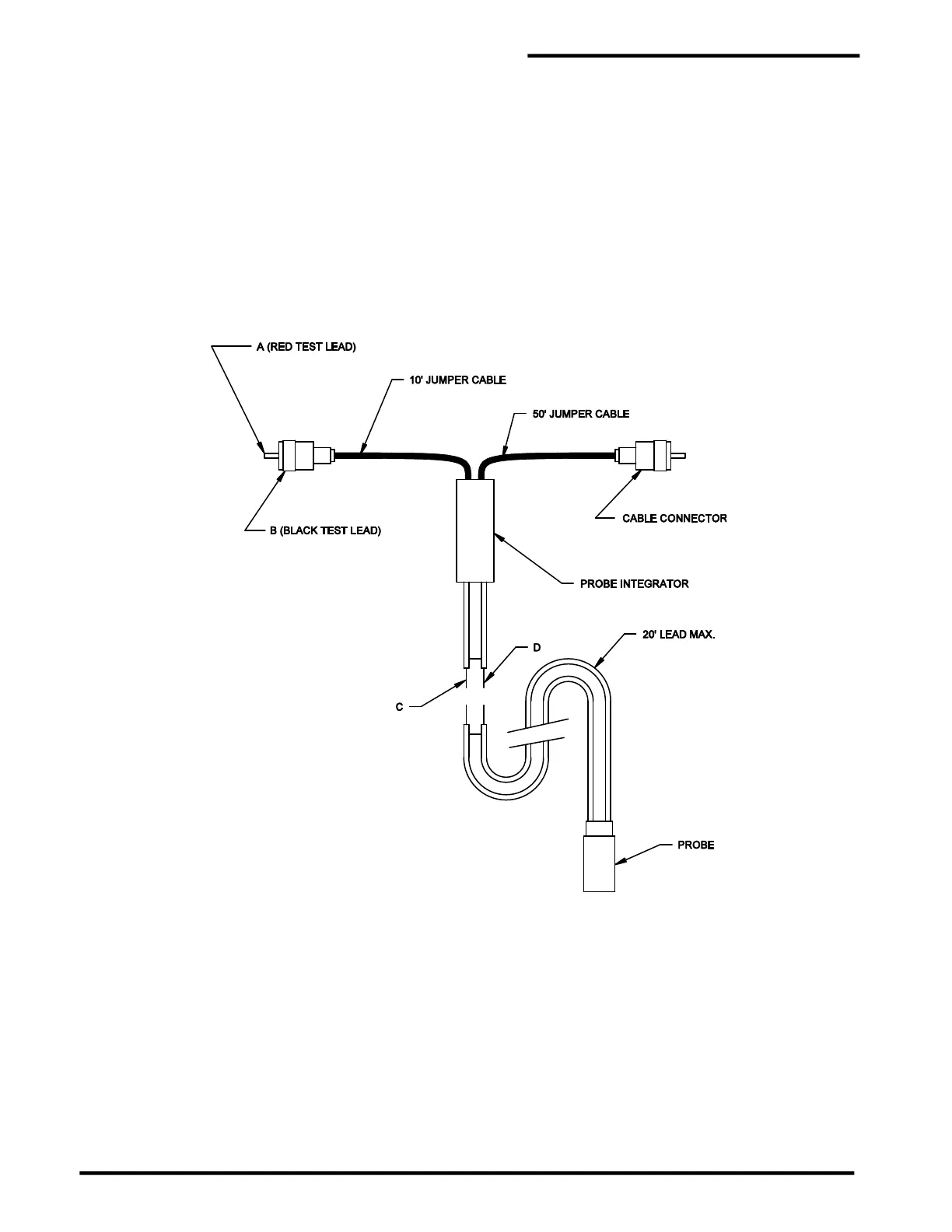

Figure 9-9 shows a typical probe integrator test setup. There are four test procedures based on the type
of integrator used. The red lead of an ohmmeter should be connected to the center pin of either of the
connectors (point A). The black lead should be connected to the connector housing (point B). The
ohmmeter should be set to resistance. Follow the test procedure in figure 9-10 to test the probe integrator
and probes.
Figure 9-9
Probe Integrator Test Setup
