PAL-AT Installation Manual
61
10. If the probe is the end of the sensing string, refer to table 4-1 (section 4) for the required length of
jumper cable needed to be added to the end of the probe.
11. Additional jumper cable may be connected on either side of the probe integrator to facilitate connection
of remote sensing string components.
12. Refer to the "Cable Connector Installation" section of this manual and install a connector on each
length of jumper cable. Test all connectors using the "Cable and Connector Testing Procedures".
13. Cable connections to jumper cable from the probe integrators will become calibration points and must
be accessible during system start-up.
14. The maximum number of probes per cable string is 10. A maximum of three probes installed past
5000' [1500 m] is allowed (Contact factory).
Table 9-1
Additional Jumper Cable after Probe
Probe Location
on Sensing String
ft / [m]
Additional JMP-U/-UD
At End of Probe
ft / [m]
Additional JPP
At End of Probe
ft / [m]
Twin Lead Length Twin Lead Length
20 / [6] 15 / [4.5] 10 / [3] 20 / [6)
15 /
[4.5]
10 / [3]
0-3000 / [0-900] 0 / [0] 0 / [0] 0 / [0] 0 / [0] 0 / [0] 0 / [0]
3001-4000 / [900-1200] 20 / [6] 0 / [0] 0 / [0] 25 / [8] 0 / [0] 0 / [0]
4001-5000 / [1200-1500] 60 / [18] 25 / [8] 20 / [6] 80 / [25] 35 / [11] 25 / [8]
Over 5000 / [over 1500] Contact Factory

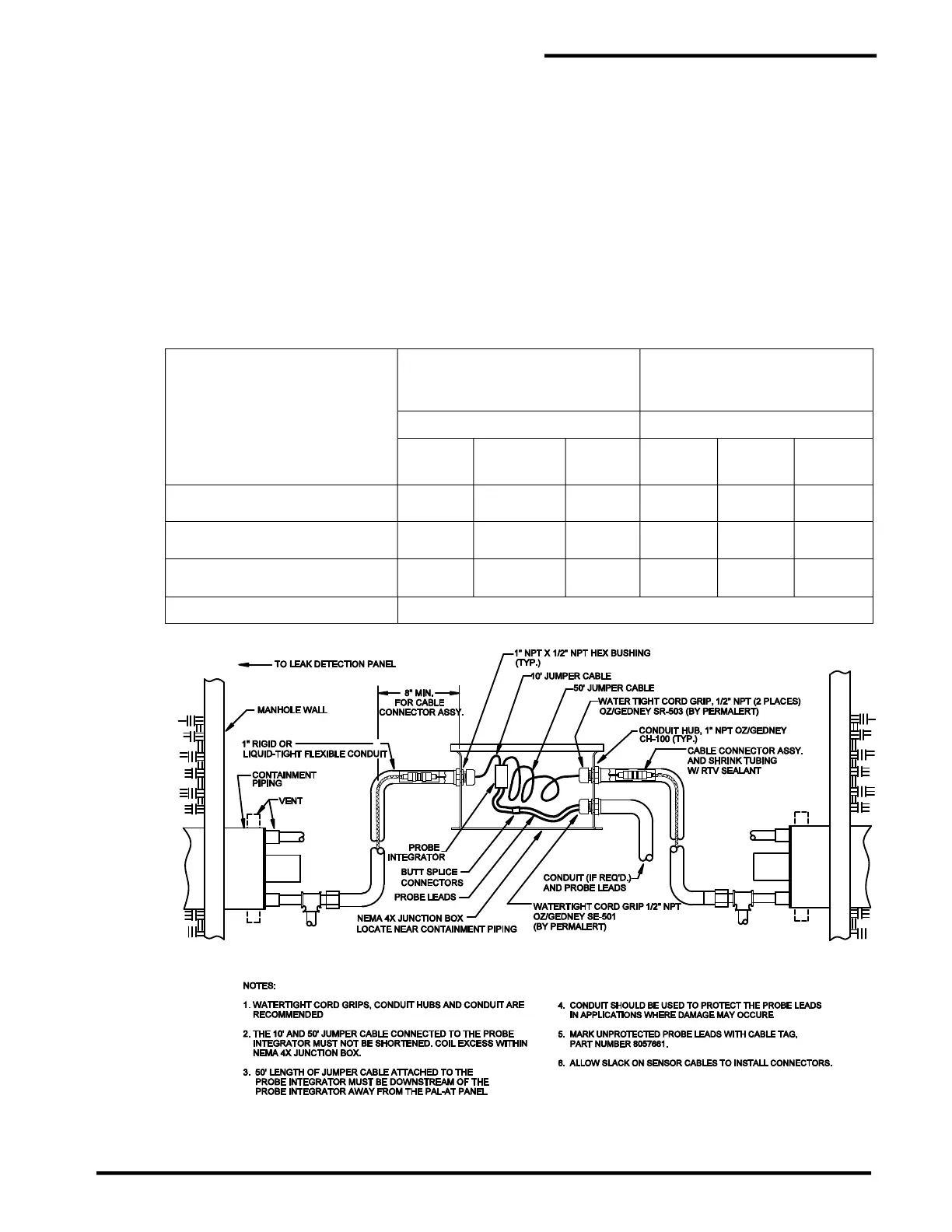

Figure 9-1
Typical Probe Connection in Monitored Areas
