Pfaff 3334 - Page 89

9's«a

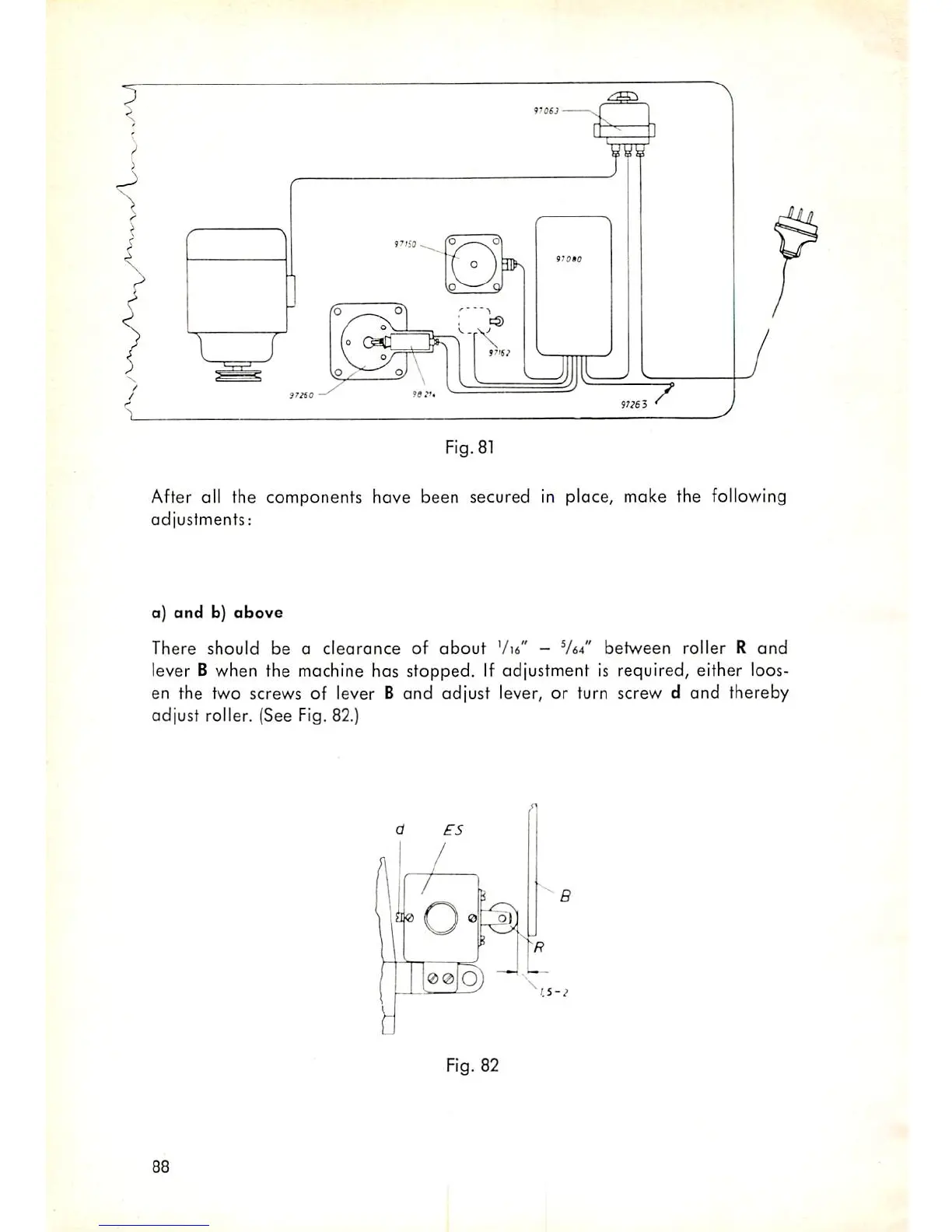

Fig. 81
After all the components hove been secured in place, make the following
adjustments:
a)
and b) above
There should be a clearance of about Vta" - between roller R and
lever B when the machine has stopped. If adjustment is required, either loos
en the two screws of lever B and adjust lever, or turn screw d and thereby
adjust roller. (See Fig. 82.)
Fig. 82
