Pfaff 3538-30/02

Set-up and Initial Commissioning
22

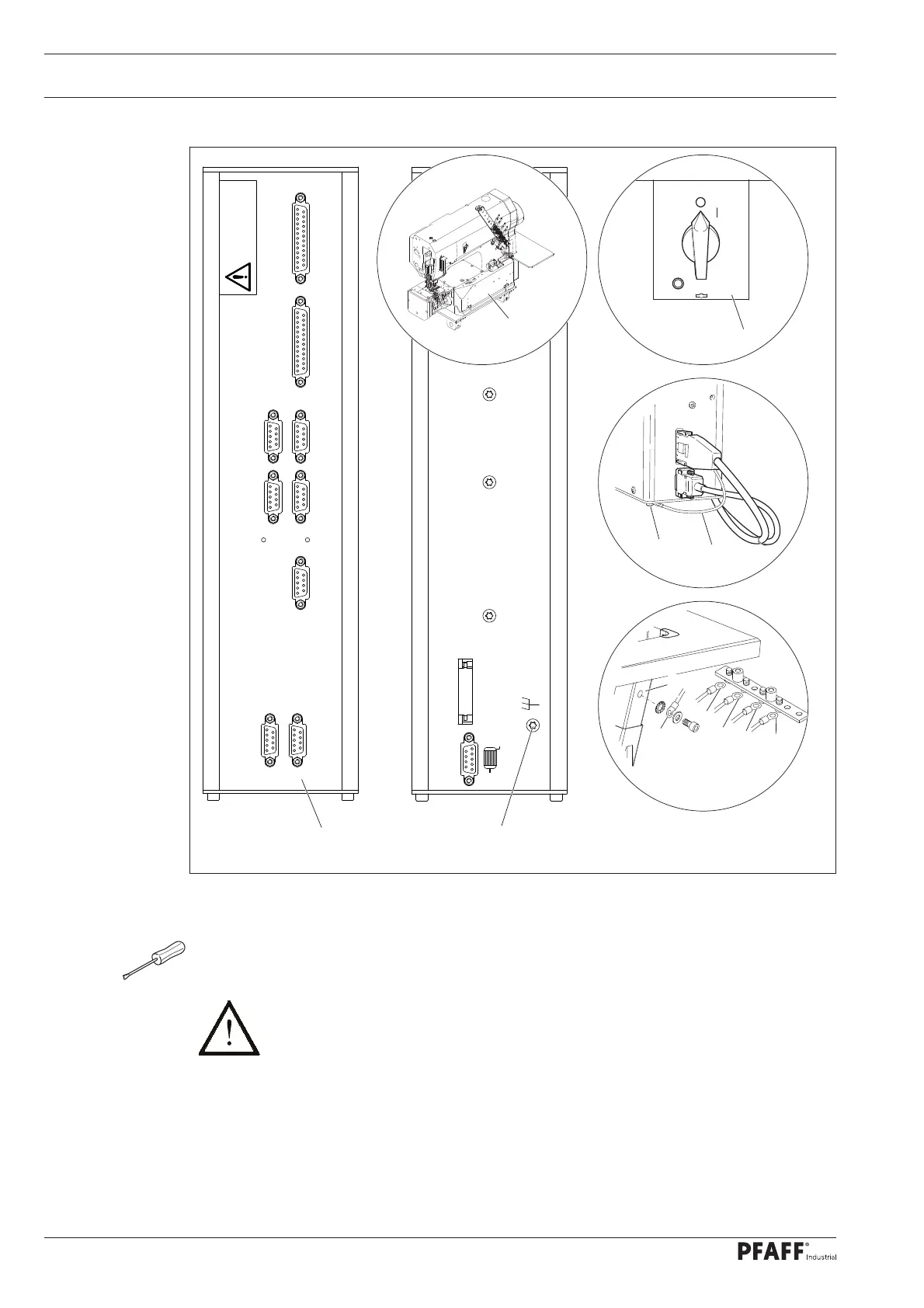

8.02 Connecting the plug-in connections and ground cable
 Insert all plugs on the control box 2 in accordance with their designation.
 Insert the “motor” into the bushing X 3 and the bushing X 8.
Caution!
Plugging in the connector incorrectly can damage the control unit!
 Attach the following ground cables in order to discharge static electricity:
 Securely attach the ground cable from the sewing head 1 to ground point A.
 Securely attach the ground cable from the control point 8 to ground point B.
 Securely attach the ground cable from the main switch 3 to ground point C.
 Securely attach the ground cable from the stand 4 to ground point D
 Securely attach the ground cable 5 from the motor to ground point E
Fig. 8 - 03
X15
Fadenwächter
X11/A
CAN-BUS
X11/B
Sollwertgeber
X1/A
RS 232/1
X1/B
SSI
Eingänge
X5
Ausgänge
X13
ATTENTION
Danger of exchange
ACHTUNG
Vertauschungsgefahr
X3
X8
Motor
X4/A
SM2
X4/B
SM1
B
2
3
E
5
A
B
C
D
4
D
1
