Pfaff 3538-30/02

Set-up and Initial Commissioning
20
8.01.01 Aligning the machine
 Loosen the adjustable feet 1.
 Align the machine horizontally by turning the levelling feet.
All four levelling feet must sit fi rmly on the ground.
 Tighten the lock nuts on the levelling feet 1.
8 Set-up and Initial Commissioning
The machine may only be set up and started up by qualifi ed personnel! All of
the relevant safety regulations must always be complied with in this process!
Adequate stability of the stand must be guaranteed, even during the sewing
operations.
8.01 Set-up
Suitable electrical and pneumatic supply connections must be provided at the erection site,
see Chapter 3 Technical Data.
The erection site must have a fi rm and level subsurface and adequate lighting.
The table top is lowered for packaging purposes.
The adjustment of the table height is described below.

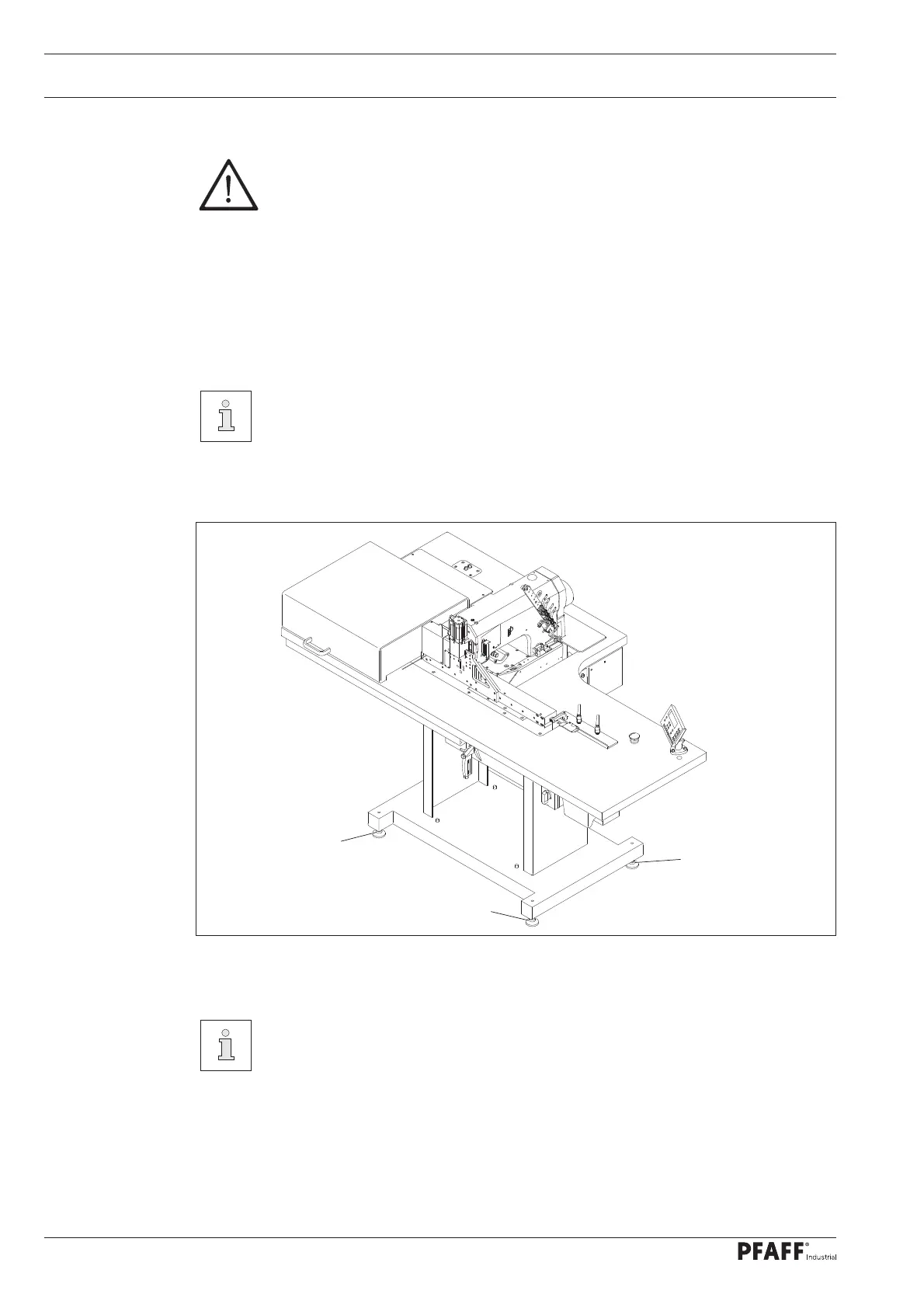

Fig. 8 - 01
1
1
1
