Maintenance and Care
40

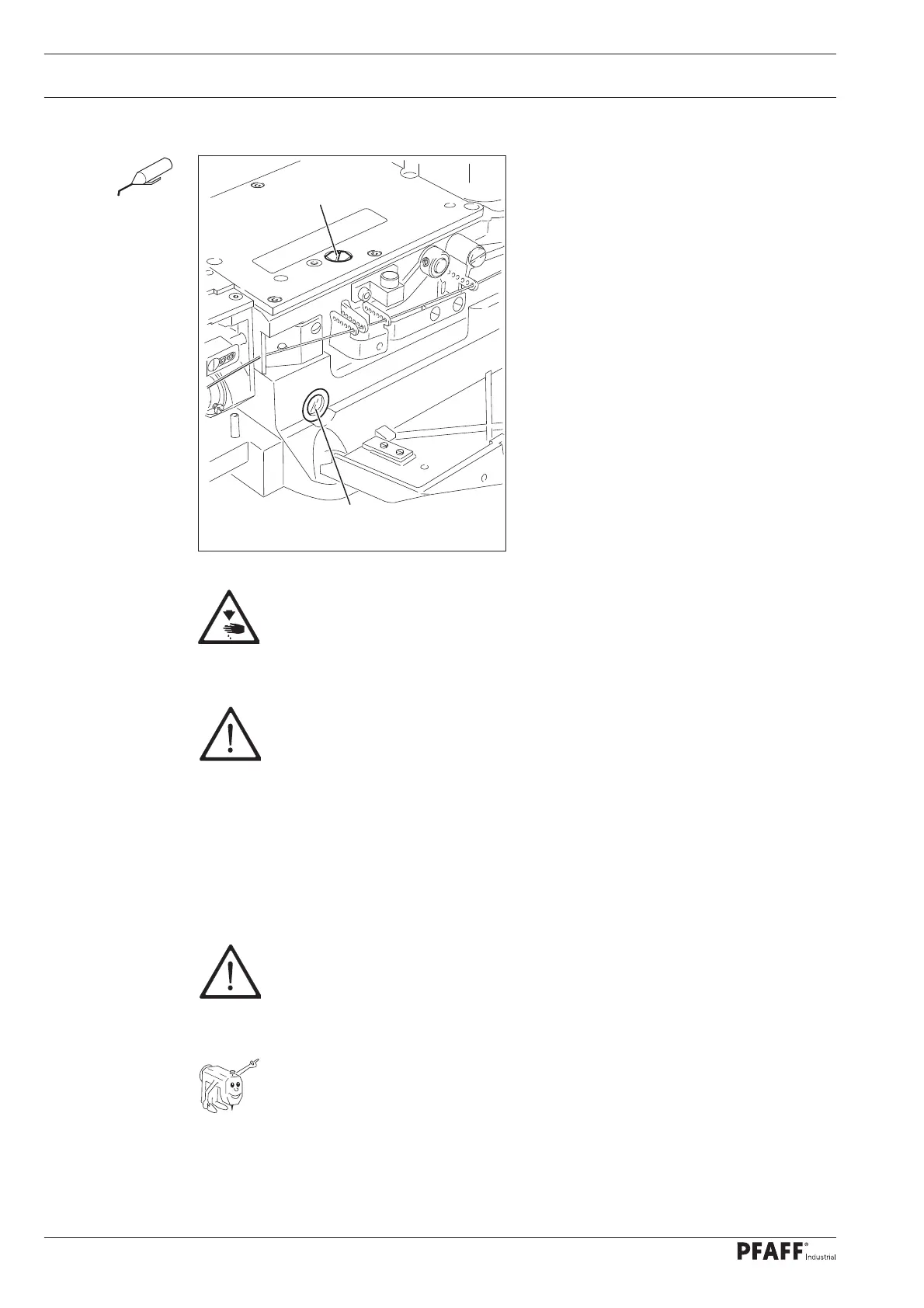

Fig. 11 - 02
11.04 Checking / topping up the oil level of the gear mechanism
1
Switch off the machine!
Risk of injury due to accidental machine start-up!
Open the side cover and check the oil level before every machine start-up.
The oil level must always be visible in the sight glass 1 (if no air bubble is visi-
ble, then the oil level is too high.)
Remove the screw 2 as needed and add only enough oil for an air bubble to remain
visible.
Replace the screw 2.
Only use oil with a centre viscosity of 22.0 mm
2
/s at 40 °C and a density of
0.865 g/cm
3
at 15 °C.
We recommend PFAFF sewing machine oil part no. 280-1-120 144.
2
