Introduction

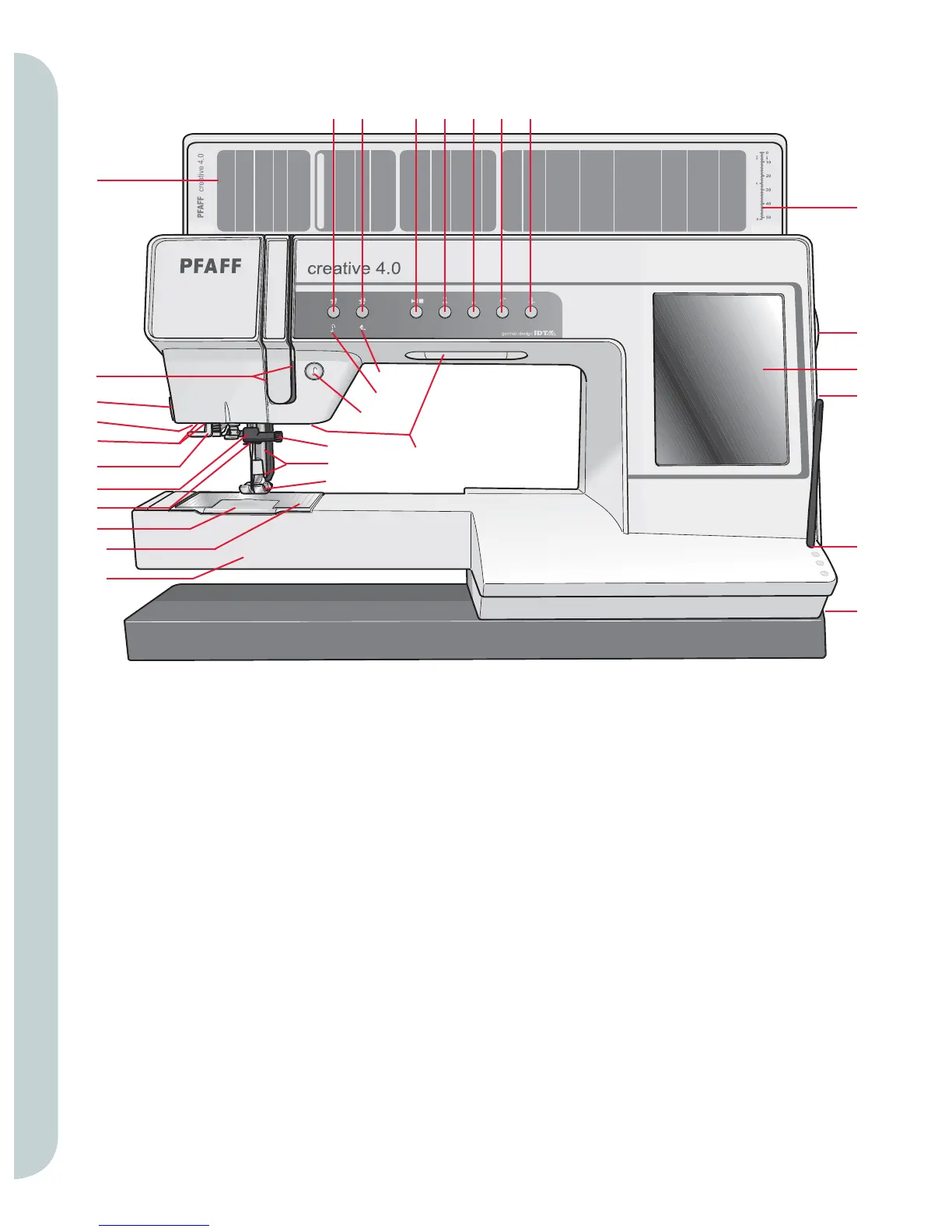

Machine overview
1. Lid with stitch chart
2. Threading slots
3. Thread cutter
4. Sensormatic buttonhole foot socket
5. LED-lights
6. Built-in needle threader
7. Needle bar
8. Needle thread guide
9. Bobbin cover
10. Stitch plate
11. Free arm
12. Presser foot
13. Presser foot bar and presser foot holder
14. Needle screw
15. Reverse
16. Reverse indicator
17. Action indicator
18. Presser foot up and extra lift toggle
19. Presser foot down and pivot toggle
20. Start/stop
21. Thread snips
22. Immediate tie-off
23. Stitch restart
24. Needle up/down
25. Button ruler
26. Handwheel
27. PFAFF® HD screen
28. Built-in USB ports
29. Stylus holder
30. Main switch, connectors for power cord and
foot control
