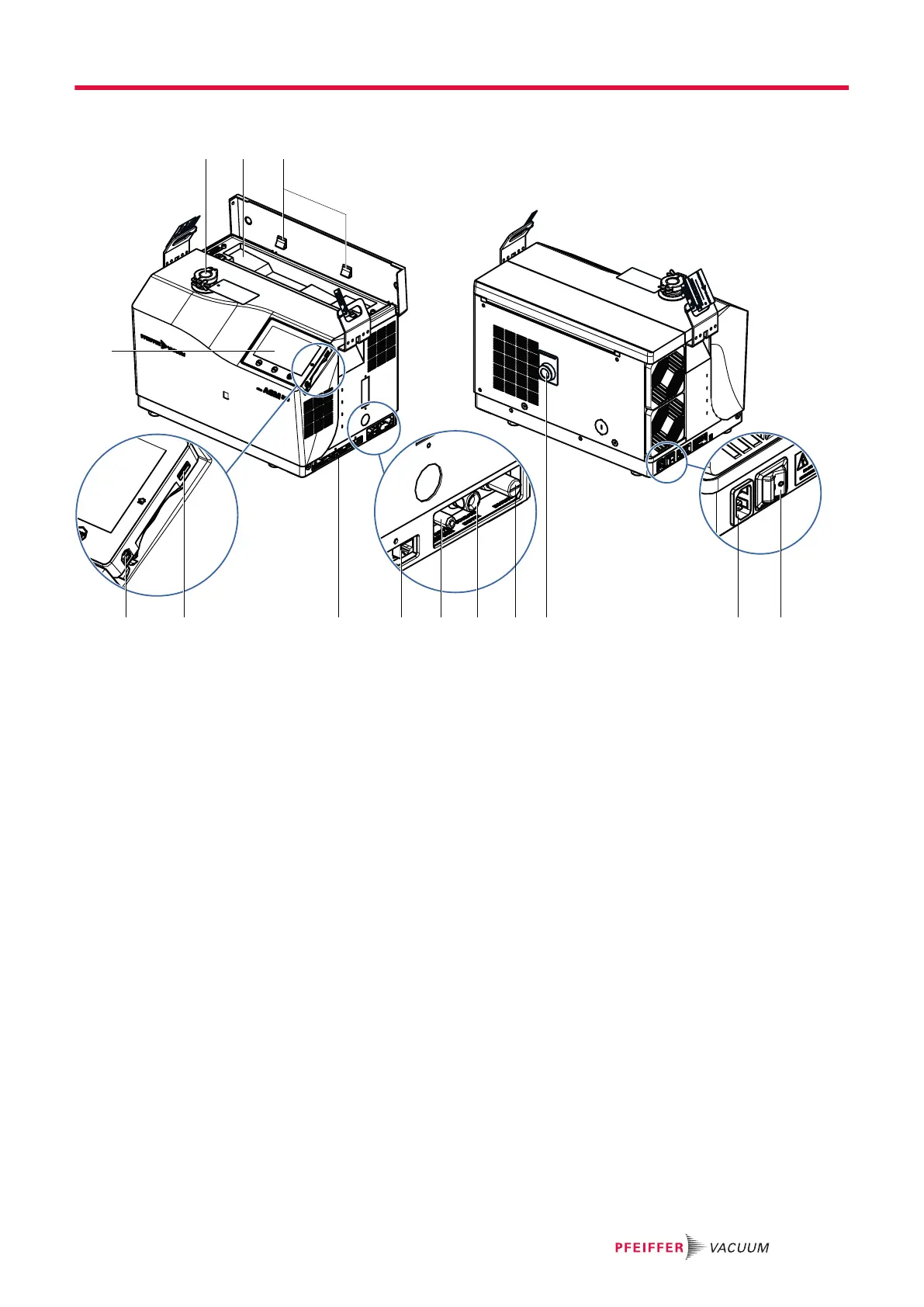

4.2 Connection interface
1 2 3
13 12 9-10-1111 8 7 6 5 4
14
15
1 Detector inlet port (inlet) 9 Inlet vent connector (SMART SNIFFER/VENT/
PURGE)
1)
2 Storage box (maximum permitted weight in
the box: 5 kg)
10 Purge inlet connector (neutral gas) (SMART
SNIFFER/VENT/PURGE)
1)
3 Fasteners for storing the Memo 11 Smart sniffer probe connector (SMART
SNIFFER/VENT/PURGE)
1)
4 Main switch/Circuit breaker (I/O) 12 Communication interface according to order
configuration (example)
5 Power supply 13 Connector for USB stick (at the user’s ex-
pense)
6 Backing pump connection (Integrable model
only)
14
RC 10 remote control connector
1)
7 Exhaust for backing pump (EXHAUST) (Wet
and Dry models only)
15 Control panel
8 Standard sniffer probe connector (STAND-
ARD SNIFFER)
1)
1) Accessory (at the customer's expense)
Product description
19/108
