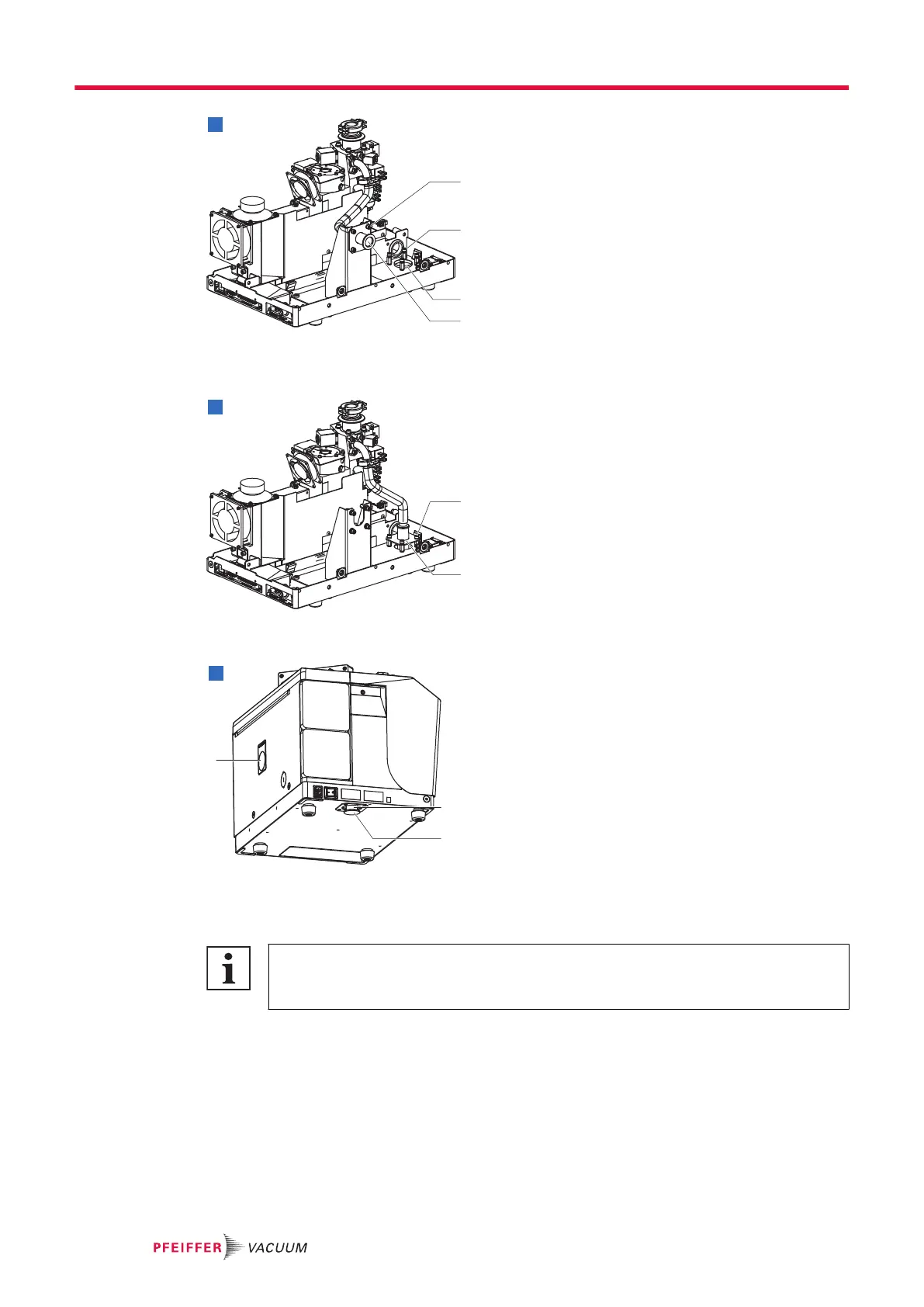

Pfeiffer Vacuum ASM 340 - Connection of an External Oil Mist Separator

3
4
1
2
A
1 4 M6x12 fixing screws and washers (rear connection) 3 Filler cap
2 4 M6x12 fixing screws and washers (connection underneath) 4 DN 25 ISO-KF connection tubing
2
1
B
1 4 M6x12 fixing screws and washers (connection underneath) 2 DN 25 ISO-KF connection tubing
1
3
2
C
1 Filler cap 3 DN 25 ISO-KF plastic blanking plate (supplied with the de-
tector)
2 DN 25 ISO-KF connection tubing
Connection tubing under the frame
When dispatching the detector in this configuration, never use a metal blanking plate and
its clamp: only a plastic blanking plate must be used.
5.9 Connection of an external oil mist separator
The user has the option of connecting an external oil mist separator to replace the internal oil mist sepa-
rator installed in the detector.
This modification requires the installation of a DN 25 ISO-KF connector to connect the external oil mist
separator.
The external oil mist separator and the DN 25 ISO-KF connector are the responsibility of the customer
(see chapter "Accessories").
Installation
