Prerequisites
1. Remove the front cover (see chapter "Disassembly/reassembly of the front cover" in the mainte-
nance instructions).
2. Remove the rear cover (see chapter "Disassembly/reassembly of the rear cover" in the mainte-
nance instructions).
3. Remove the internal oil separator (see chapter "Replacing the internal oil mist separator" in the
maintenance instructions).

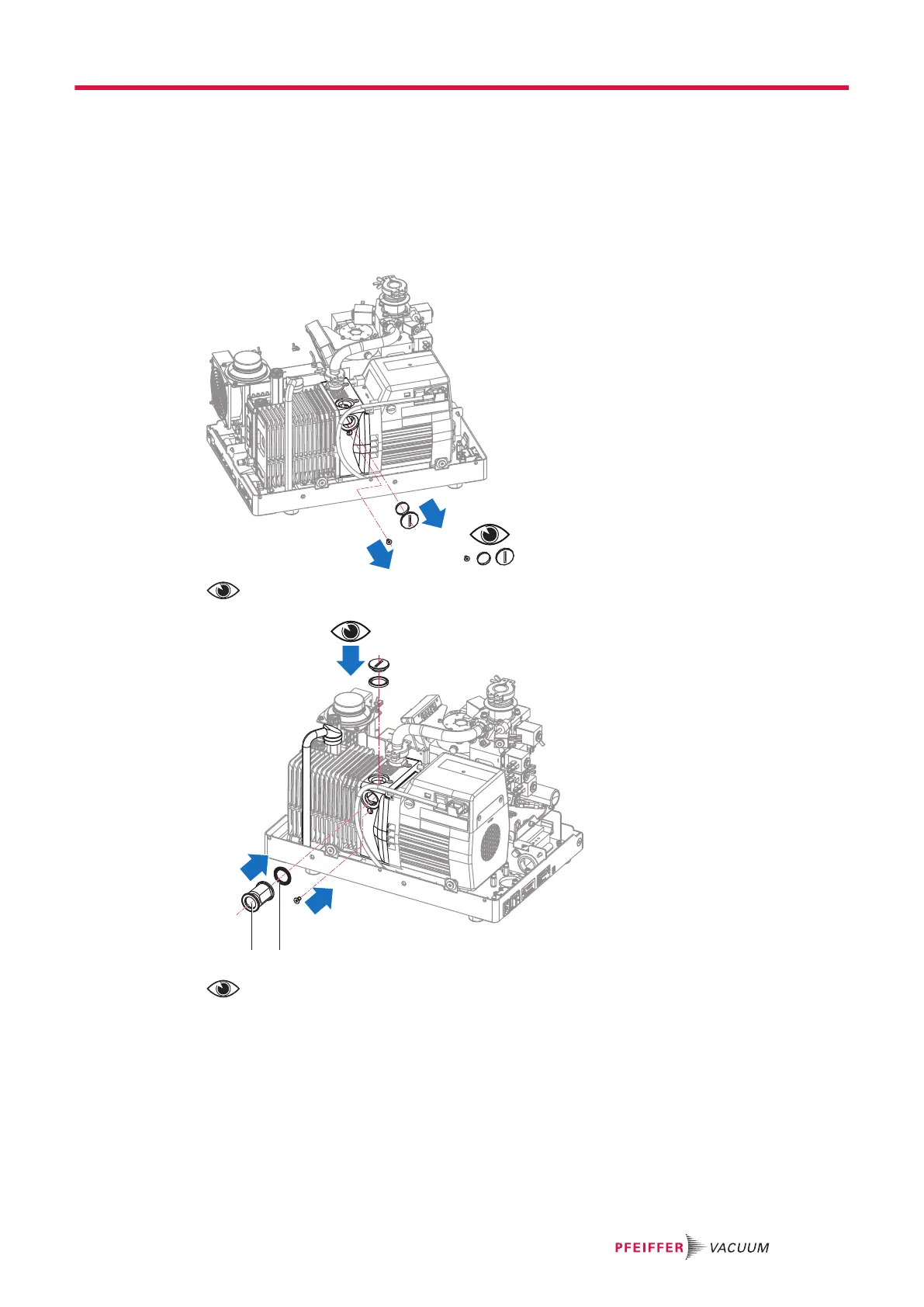

Procedure
2
1
The 3 components are reused in the following steps.
3
5
4
1 2
The cap must be screwed on fully.
1 Connector DN 25 ISO-KF 2 Seal DN 25 ISO-KF (supplied with the connector)
Installation
