BG 5195 BEN / A (2011-05) TPG261.oi 17
DANGER
DANGER: protection class of the rack
If the product is installed in a control panel, it
is likely to lower the protection class of the
control panel (protection against foreign
bodies and water) e.g. according to the
EN 60204-1 regulations for switching cabi-
nets.
Take appropriate measures for the control
panel to meet the specifications of the pro-
tection class.

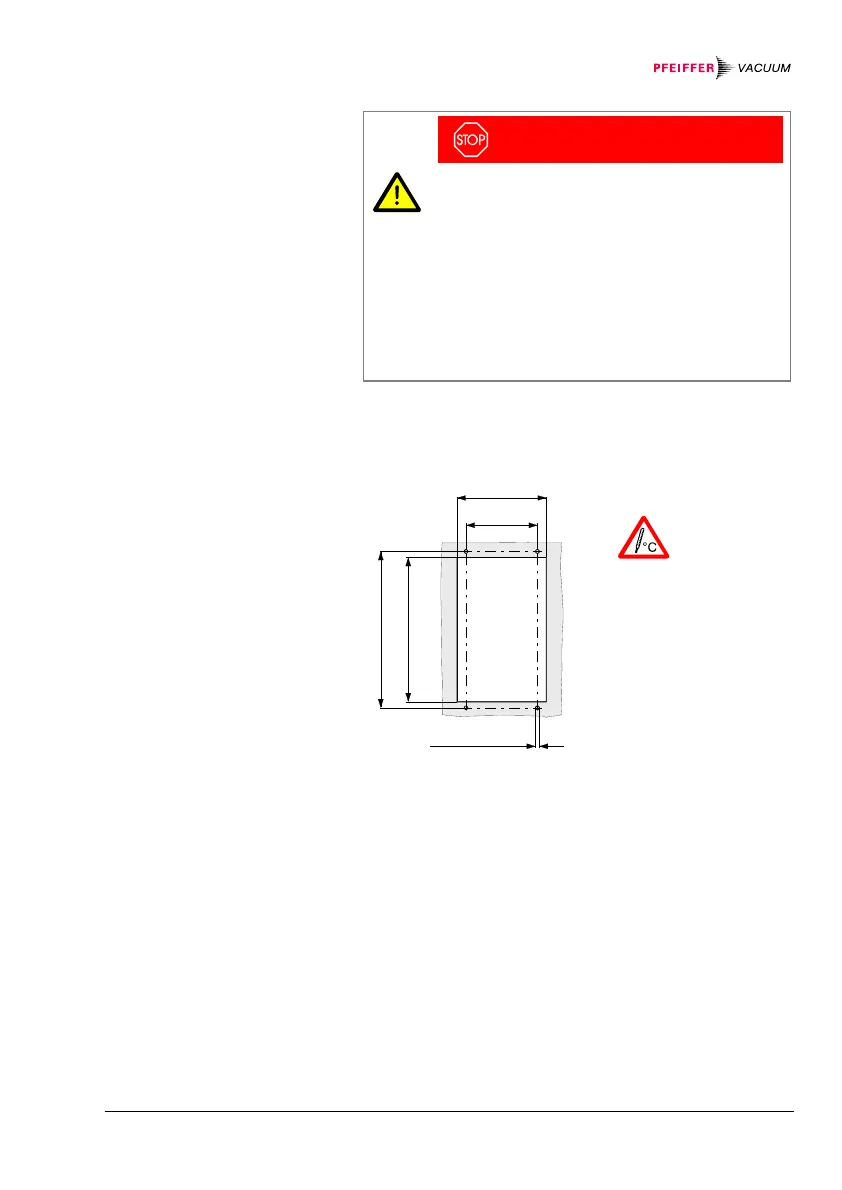

For mounting the TPG 261 into a control panel, the fol-
lowing cut-out is required:
M3 or ø3.5
122.5
113
70
55.9
The admissible maxi-
mum ambient tem-
perature (→ 9) must
not be exceeded nei-
ther the air circulation
obstructed.
For reducing the mechanical strain on the front panel,
preferably support the unit.
3.2.2 Installation in a
Control Panel
