18
BG 5195 BEN / A (2011-05) TPG261.oi

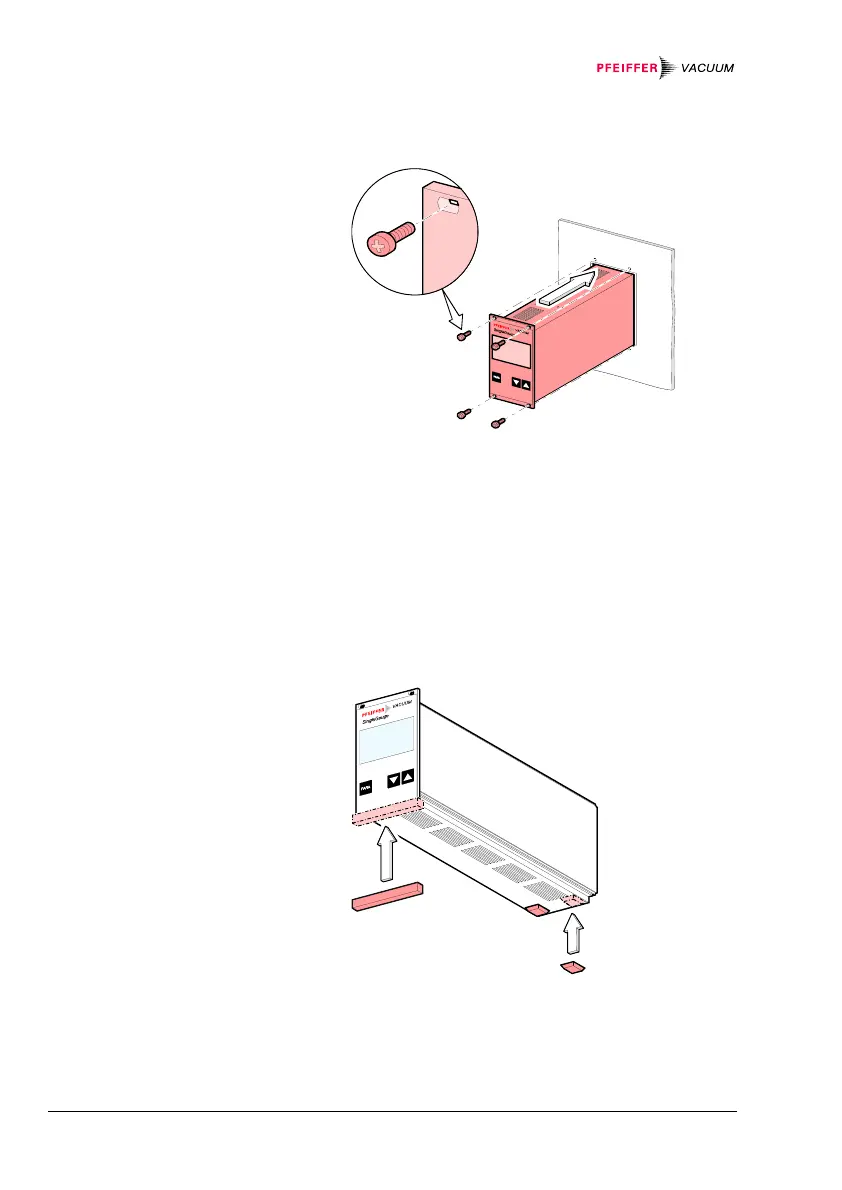

n Slide the TPG 261 into the cut-out of the control
panel …
… and secure it with four M3 or equivalent screws.
The TPG 261 is also suited for use as desk-top unit. For
this purpose, two self-adhesive rubber feet as well as a
slip-on rubber bar are supplied with it.
n Stick the two supplied rubber feet to the rear part
of the bottom plate …
… and slip the supplied rubber bar onto the bot-
tom edge of the front panel.
3.2.3 Use as Desk-Top
Unit
