Pfeiffer TPG 261 - 3.4 Gauge Connector sensor

20
BG 5195 BEN / A (2011-05) TPG261.oi
Do not unfasten
this screw
(internal ground
protection)

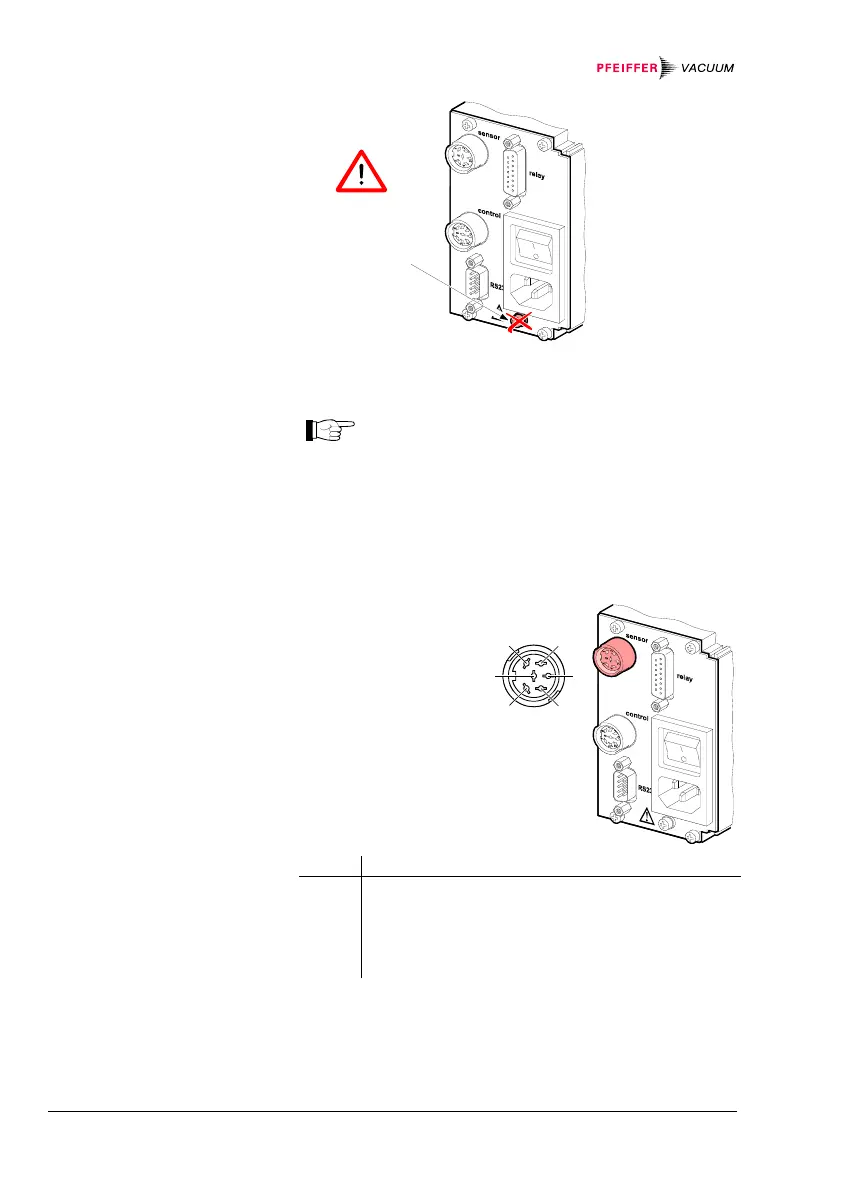

Connect the gauge to the sensor connector via
a sensor cable set available from us (
→ sales
literature) or your own, screened (electromag-
netic compatibility) sensor cable. Make sure the
gauge you are connecting is compatible
(→  9).
Pin assignment of
the female 6-pin
Amphenol C91B ap-
pliance connector:
1
2
3
4
5
6
12
54
63
Pin Signal
1
6
2
3
4
5
Identification
Supply +24 VDC
Supply common GND
Signal input (measuring signal+)
Signal common (measuring signal–)
Screening
