PG DRIVES TECHNOLOGY NEWVSI TECHNICAL MANUAL – INSTALLATION
SK80151-1 23
3.1 newVSI - Beau
This configuration uses the industry standard 9 way Beau connector for battery, motor and brake connections.
Only use Beau part S9G-5409CCT (PG part 63.20.012) as the mating connector.

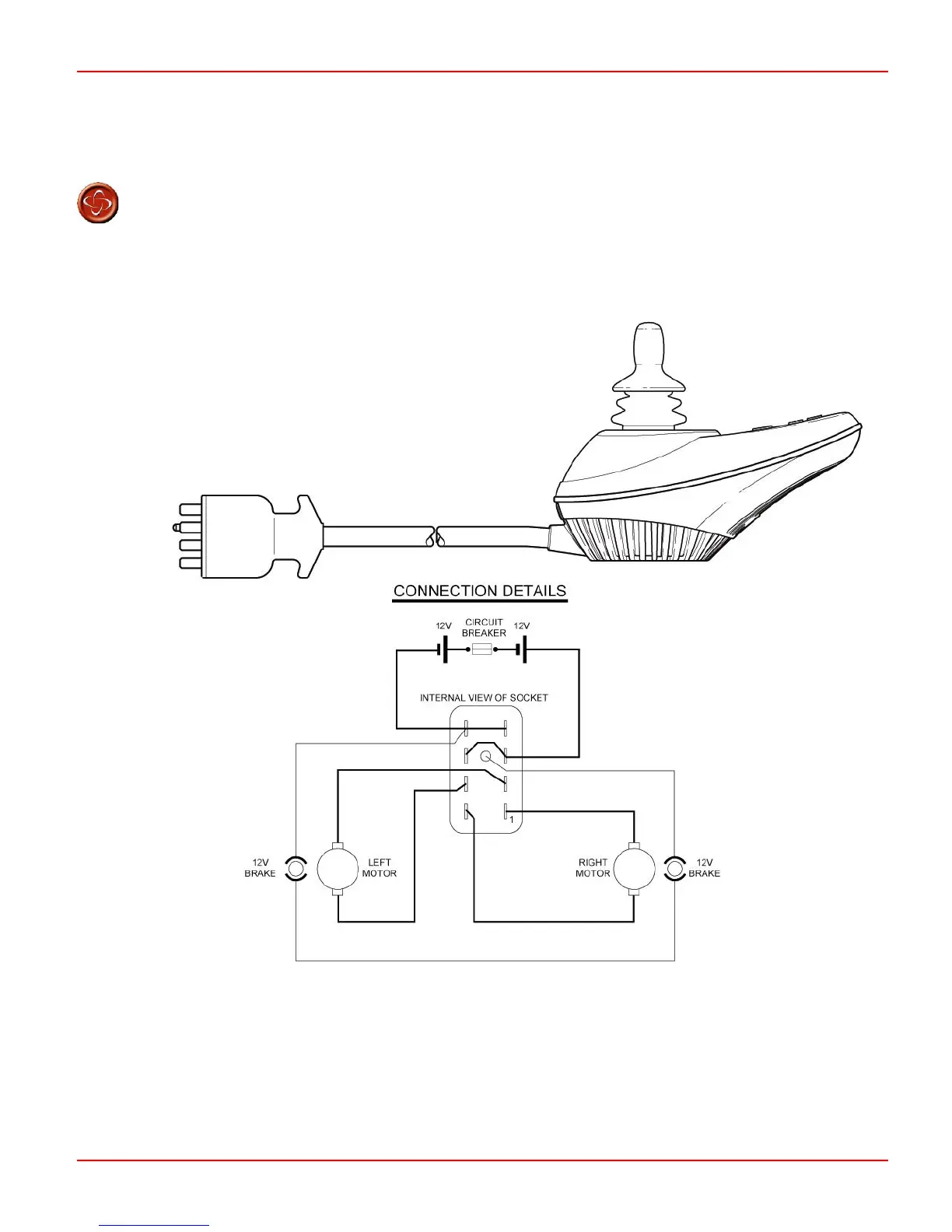

Refer to the following Illustration for connection details.
The Illustration shows 12V brakes connected in series. It is possible to use 24V brakes connected in parallel, refer to section 4.5.
