NEWVSI TECHNICAL MANUAL INSTALLATION PG DRIVES TECHNOLOGY
24 SK80151-1

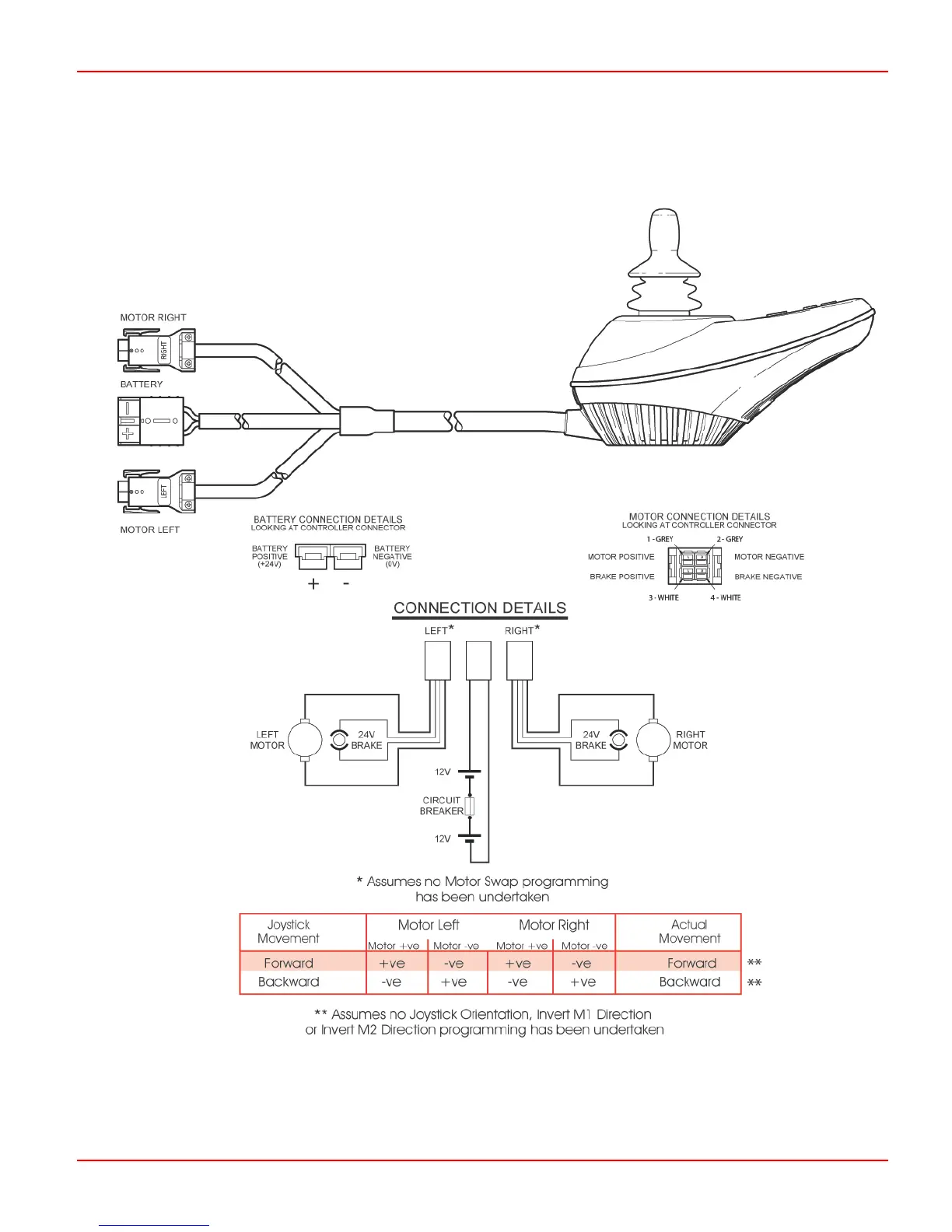

3.2 newVSI - Anderson
This configuration uses Anderson connectors for battery, motor and brake connections.
