PG DRIVES TECHNOLOGY NEWVSI TECHNICAL MANUAL – INSTALLATION
SK80151-1 29
Ensure that the charger plug pins are of the correct polarity to be compatible with the pin
polarity shown on the controller’s specific data sheet. Failure to observe this condition could
result in a burn hazard or fire hazard. PGDT accepts no liability for losses of any kind arising
from failure to comply with this condition.
Do not disconnect batteries or open-circuit the circuit breaker while charging is in progress.
Failure to observe this condition could result in a burns hazard or fire hazard. PGDT accepts no
liability for losses of any kind arising from failure to comply with this condition.

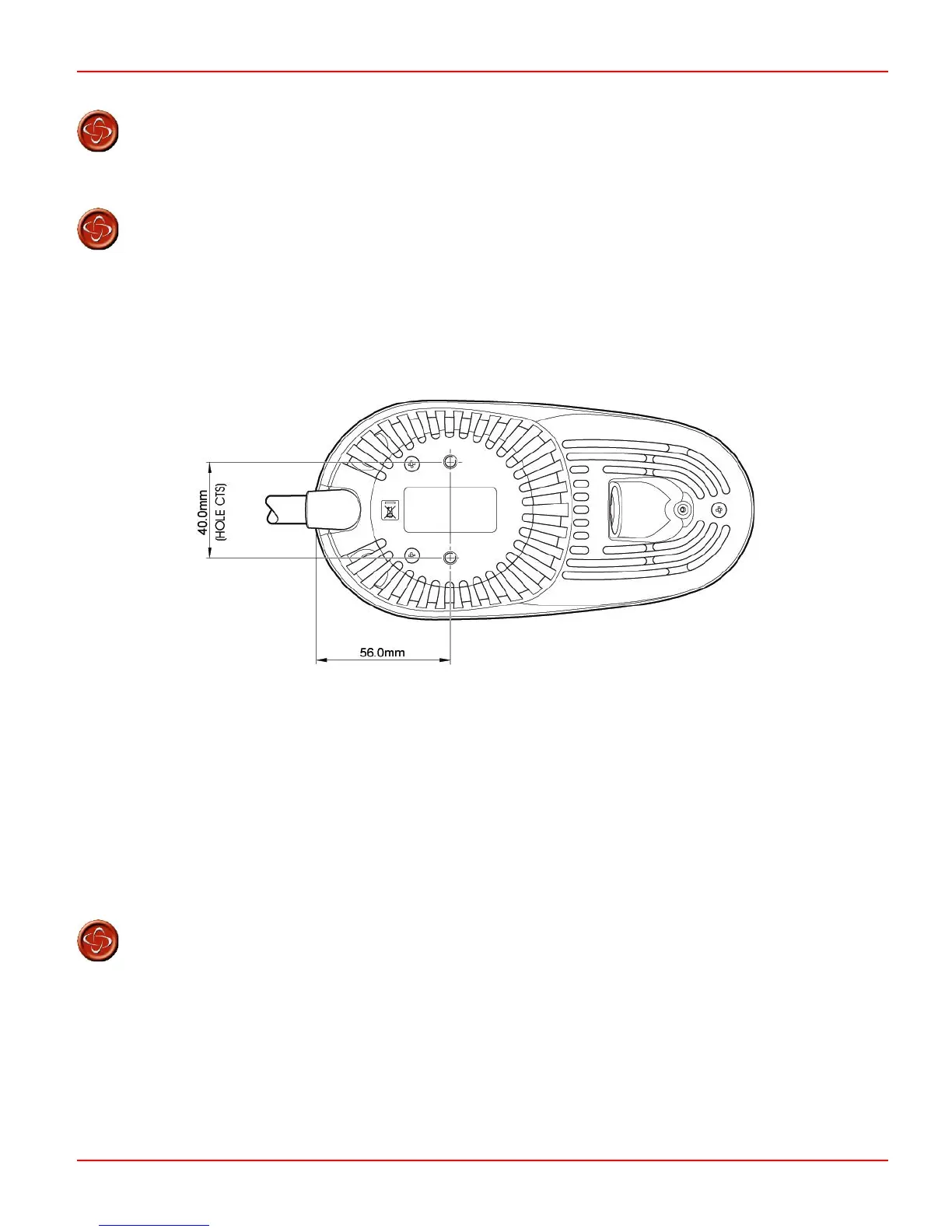

8 Mounting
The Joystick Module should be secured using two M5 screws with a maximum penetration of 12mm. Be careful not to over-
tighten the screws. See data sheet for further information.
8.1 Orientation
The controller is not sensitive to mounting orientation except where it is exposed to water or dust. In this situation the controller
must be mounted with the joystick shaft pointing vertically upwards to maintain resistance to IPx4 as stated on the data sheet:
If you want to use any other mounting attitudes then contact PGDT for advice.
9 Production Tests
• Perform the following tests in order, for each wheelchair before dispatch.
These tests should be conducted in an open space and a restraining device such as a seat belt
should always be used. PGDT accepts no liability for losses of any kind arising from failure to
comply with this condition.
9.1 Mounting
• Make sure that the controller is securely mounted. Do not over-tighten any securing screws.
