a. Power Terminal Overview
b. Power Terminal Close-Up

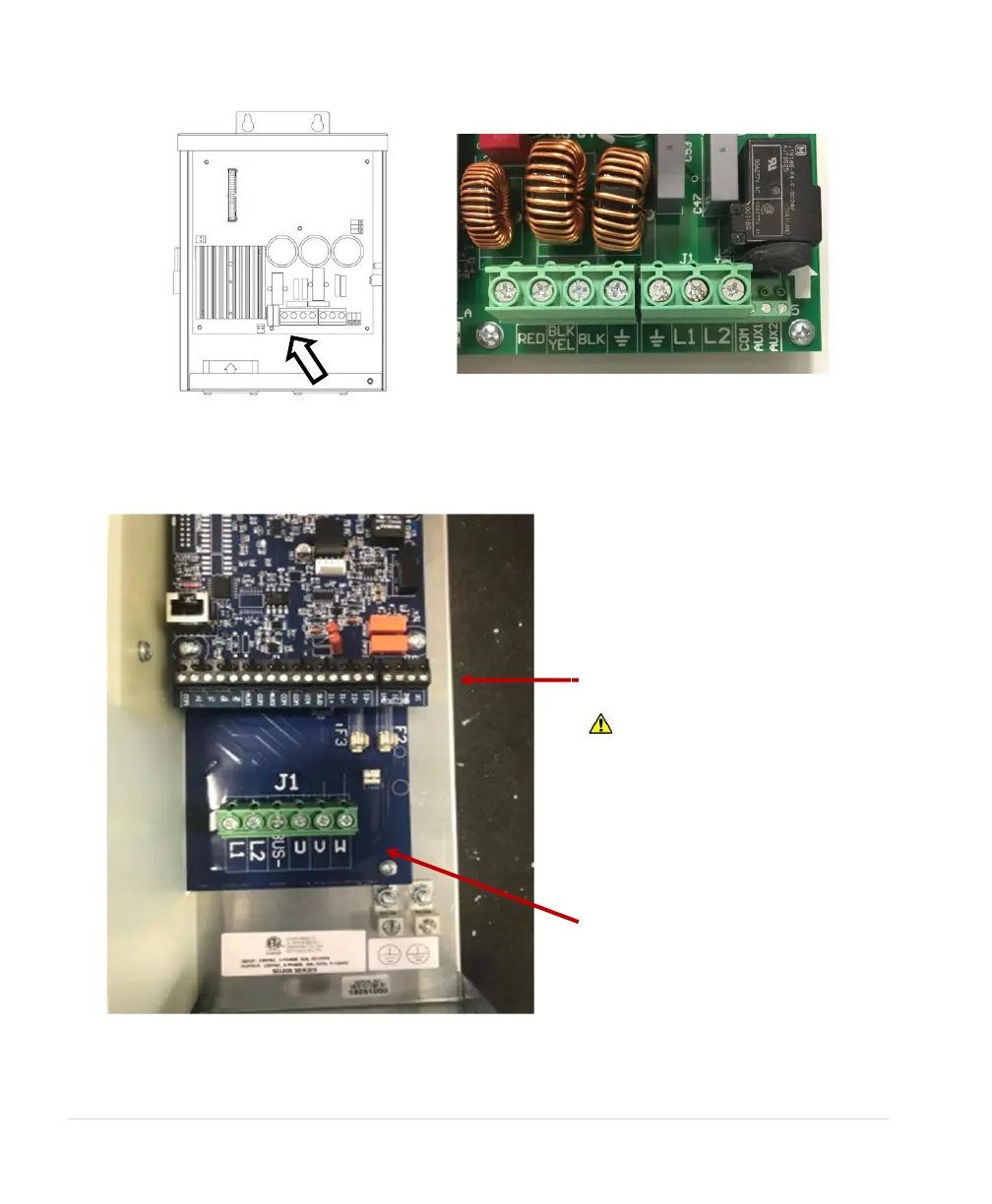

Figure 13 – Power Terminal Location, SD002, SD003
Figure 14 – Power Terminal Location, SD
Motor Output Terminals and
Power Input Terminals
SD002 to SD005
(No output filter option)
Control Terminals
CAUTION: Do not route
control circuit cables near the
main motor output cables.
Electrical noise from the main
motor cables can couple onto
the cables, resulting in
distortion of control signals.
