170B6 LCD
Installation
Cable management

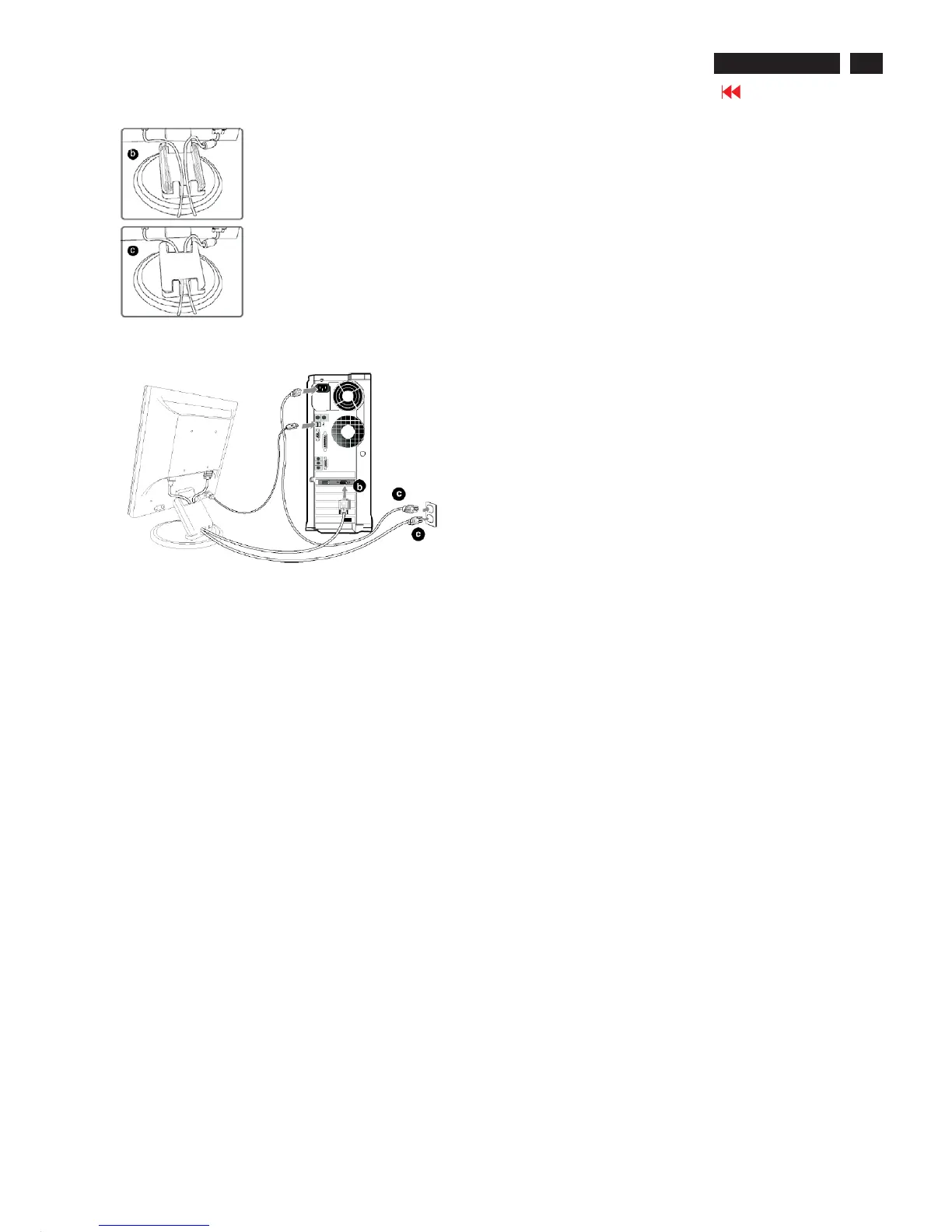

a) Remove the top cover of the arm box
b) Put the cables inside the arm box
c) Put the top cover back
2) Connect to PC
(a) Turn off your computer and unplug its power cable.
(b) Connect the monitor signal cable to the video connector on the
back of your computer.
(c) Plug the power cord of your computer and your monitor into a
nearby outlet.
(d) Turn on your computer and monitor. If the monitor displays an
image, installation is complete.
3) USB plug
(a) Connect USB upstream port on monitor and the USB port on
PC with a USB cable.
(b) The USB downstream port is now ready for any USB device to
plug in
Note: The USB plug is a pass through connection whether it can
support USB 1.1 or USB 2.0 depends on your PC's specification.
