Philips 150B6CB/00 - Exploded View

93
Go to cover page
170B6 LCD

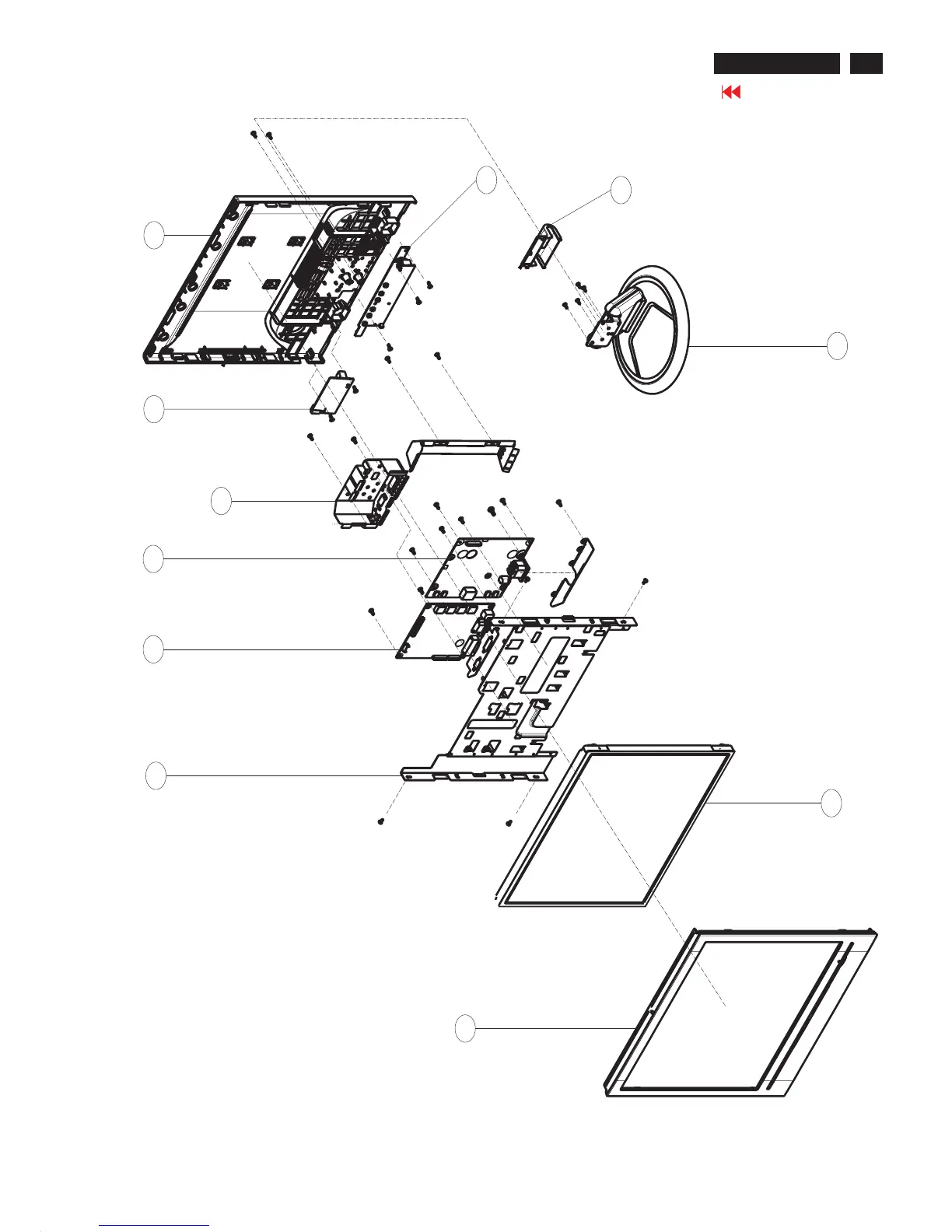

Exploded View
313810440571
HOUSING COVER
90
313815861771
USB ASSY
1054
313815758571
BACK COVER ASSY
40
313815411602
HINGE COVER(T)
101
313815755861
COMPACT BASE(T)
50
313815861731
AUDIO + CTL ASSY
1052
313815861751
SCALER ASSY
1051
823827717111
LIPS(AIP-0093)
1055
313815861941
FRAME+WIRE ASSY
1057
823827717631
TFT-LCD MOD QD170EL07 REV.09
1050
313815758541
BEZEL ASSY(T)
30
