170B6 LCD
On Screen Display
Description of the On Screen Display
On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions
of the monitors directly through an on-screen instruction window. A user friendly on screen display interface is shown as below :
Basic and simple instruction on the control keys.
In the OSD shown above users can press buttons at the front bezel of the monitor to move the cursor, to confirm the choice or
change, and to adjust/select the change.

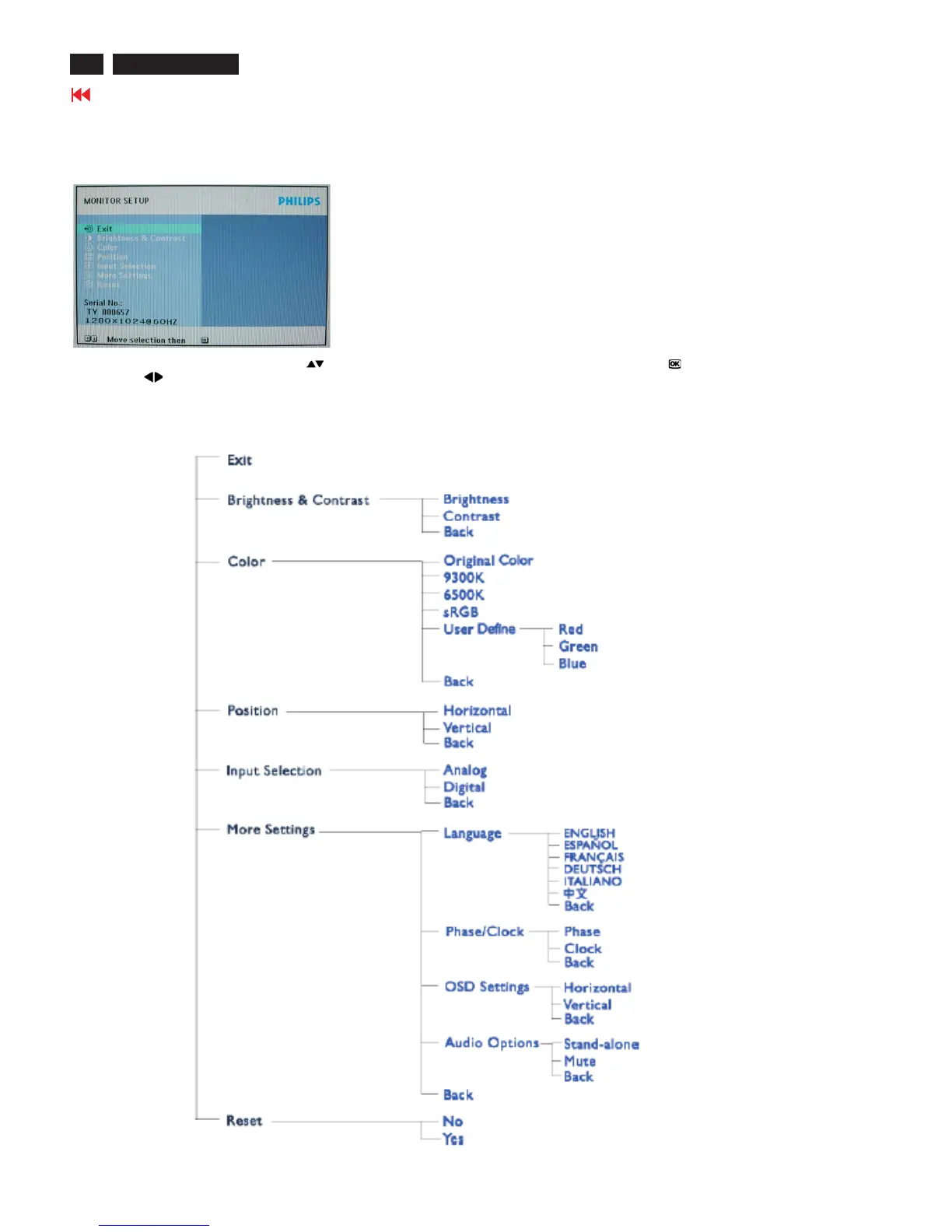

The OSD Tree
Main Menu Sub Menu
To Next Page
