DPM 8000 series - Technical Specification and Advanced Device Configuration Page 11

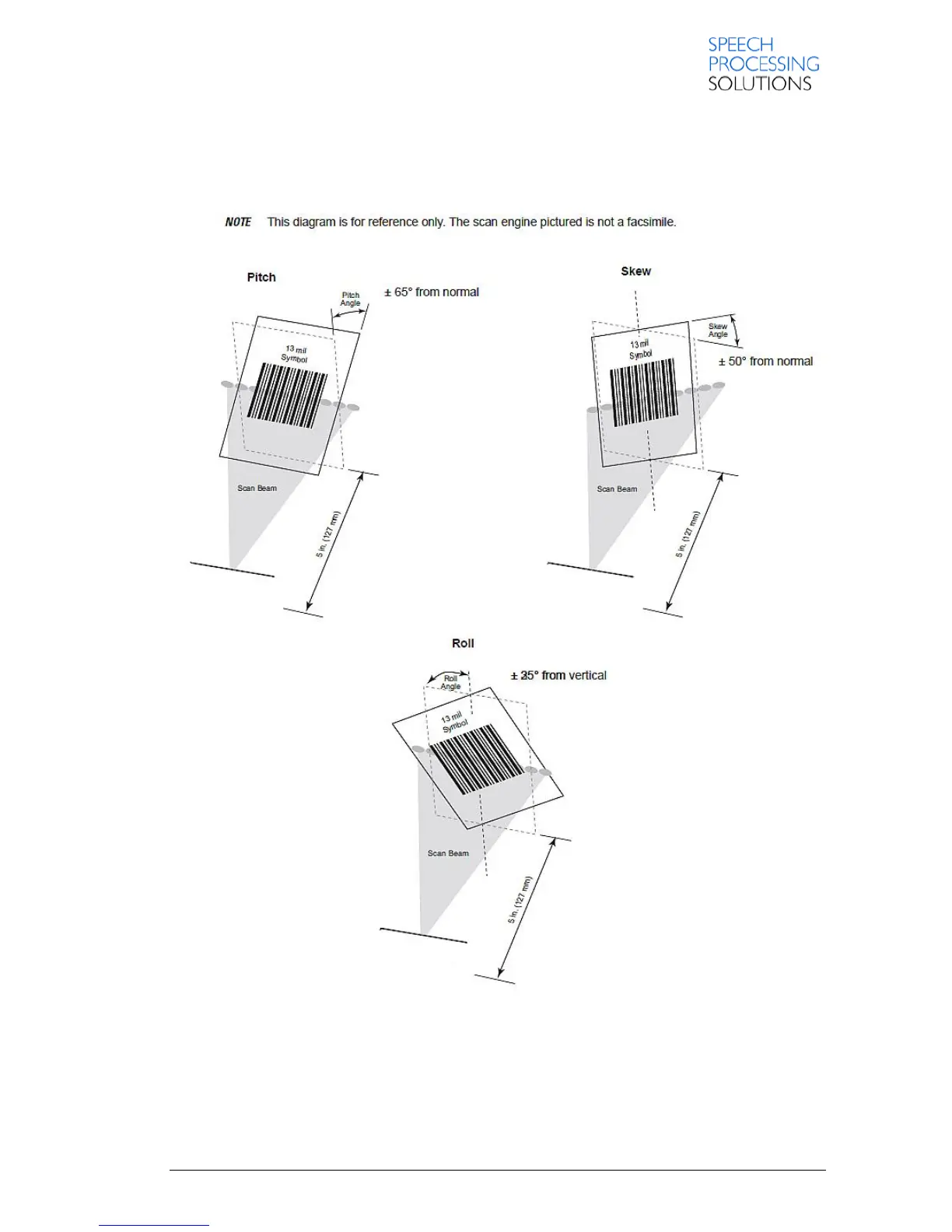

Notes:
 Distances are measured from the front flange surface of the image lens
 Symbols are to be mounted with a pitch of 15 +/- 3° away from the engine.
 Maximum allowable roll angle of symbols relative to the engine to the engine mounting base
plane is +/- 3°.
