10 Hookups With a Cable Box/Direct Broadcast System
There are two ways to connect your Cable Box/DBS to the DVD/VCR. With this connection:
● You may view any channel.
● You must select channels at the Cable Box/DBS. Channels cannot be changed at the DVD/VCR.
● You may not view a channel other than the one you are recording.
● You may not program channels at the DVD/VCR.
● You can only program a timer recording for one channel at a time. Set the TV and the DVD/VCR to the
Cable Box/DBS output channel (channel 03 or 04); set the CH3/CH4 switch to the same channel. Set your
Cable Box/DBS to the channel you want to record. When you enter the channel you want to record in a
timer recording, select channel 03 or 04 (the Cable Box/DBS output channel). (This is step 5 on page 37.)
Leave the Cable Box/DBS on for a timer recording.
OUT
IN
75
ANT /
CABLE
DVD/VCR
AUDIO OUT
DVD/VCR
OUT
IN
VIDEO
ANT-IN
ANT-OUT
AUDIO
R
L
R
CH3 CH4
L
TV’s
ANTENNA IN
Jack
Cable Box/DBS
DVD/VCR

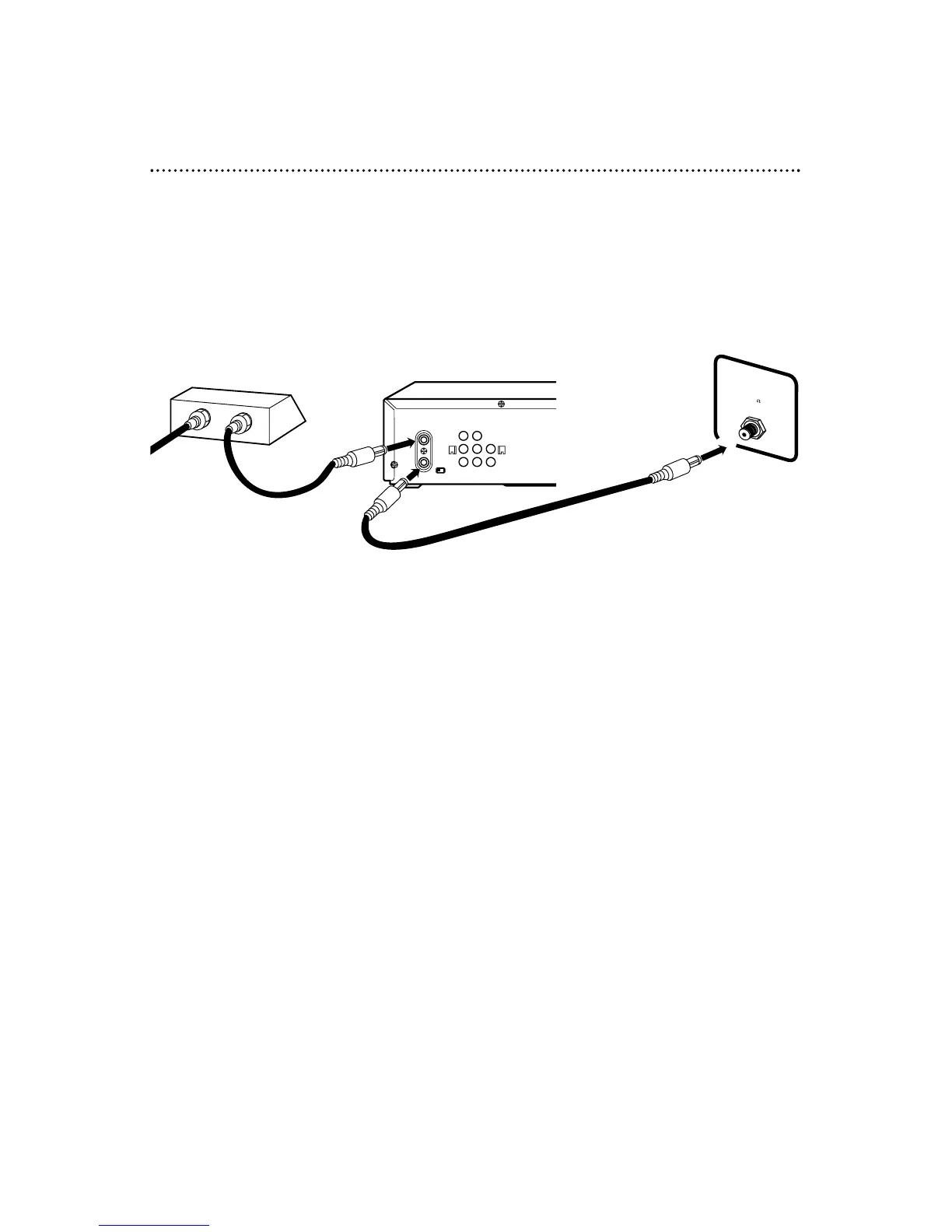

Recording/Viewing Any Channel
Connections
1
With the DVD/VCR on and in VCRposition (the VCR light and the VCR/TV
light will appear on the display panel), use the CHANNEL o/p buttons to
set the DVD/VCR to the Cable Box/DBS output channel (channel 03
or 04). Set the CH3/CH4 switch to the same channel.
2
Set the TV to the same channel to which you set the DVD/VCR.
3
Select the channel you want to view/record at the Cable Box/DBS.
1
Connect a Cable signal to the IN Jack on the Cable Box/DBS.
2
Use an RF coaxial cable (supplied) to connect the OUT Jack on the Cable
Box/DBS to the ANT-IN (Antenna In) Jack on the DVD/VCR.
3
Use a second RF coaxial cable to connect the ANT-OUT (Antenna Out) Jack on
the DVD/VCR to the TV’s ANTENNA IN Jack.
1
2
3
Cable
Signal
RF coaxial
cable
RF coaxial
cable
