7
Remove the deco cover
and press the button
at the top of the inside
escutcheon to remove
the battery cover,
and fasten the inside
escutcheon with two
M6 mounting screws.
Put the deco cover
back, install the
batteries and install
the battery cover and
strike.
Check whether
the rotary knob,
mechanical key, and
all other components
work properly.

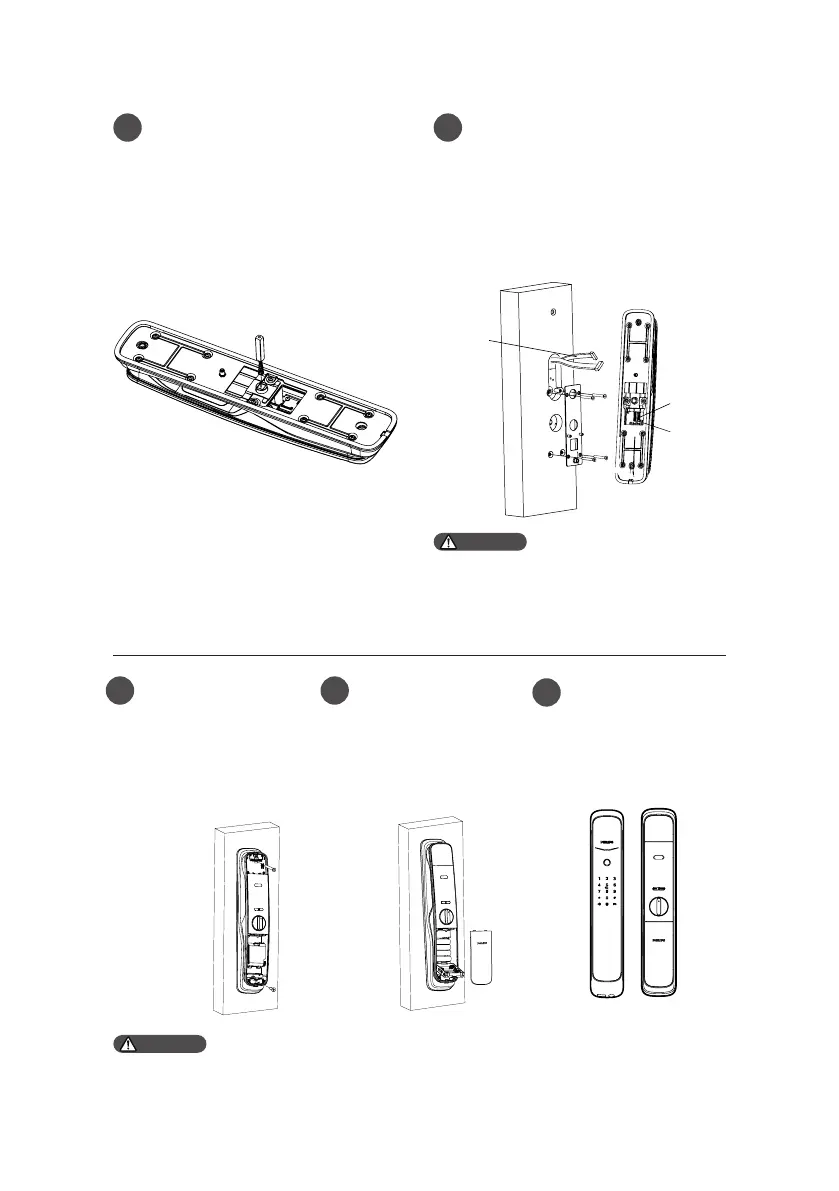

Put the compressed spring and
square shaft into the square shaft
hole of the inside escutcheon
accordingly.
5 6
Insert the cable of both outside
escutcheon and mortise into the
corresponding sockets on the
inside escutcheon. Then insert
the square shaft of the inside
escutcheon to the rotary hole
on the mortise until the inside
escutcheon is close to the surface
of the door.
Mortise cable
Mortise cable
connector
Escutcheon
cable
connector
Make sure the escutcheon cable and
the mortise cable are hidden in the slot
on both sides of the square shaft, and
also hide the extra cables in the door
hole or the inside escutcheon.
Attention
After nishing the strike installation, please check whether the smart
lock can lock or unlock normally.
Attention
7 8
9
