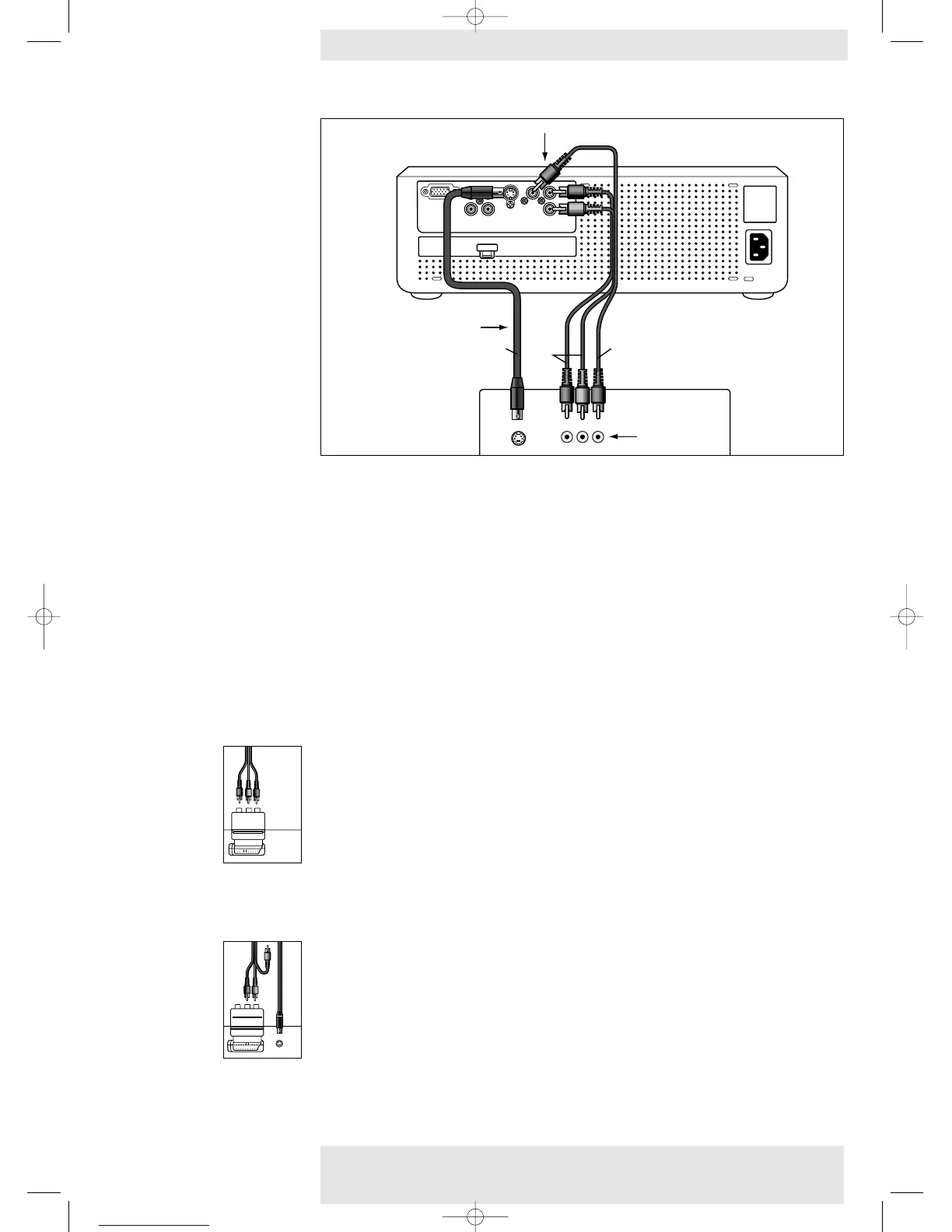

1 Connect the Video (out) socket of a VCR, DVD player, video camera or TV to the Video (in)
socket of the projector.
For this, use the video/audio connection cable (1a) supplied.
2 Connect the Audio out L/R sockets of the VCR, DVD player, video camera or TV to the
Audio (in) L/R sockets of the projector.
For this, use the audio/video connection cable supplied (1b).
1 Connect the S-Video (out) socket of a S-Video recorder, DVD player, video camera or TV
to the S-Video (in) socket of the projector.
For this, use the S-Video connection cable supplied (2).
2 Connect the Audio out L/R sockets of the S-Video recorder, DVD player, video camera or
TV to the Audio (in) L/R sockets of the projector.
For this, use the audio/video connection cable supplied (1a).
Video (CVBS)
1 Connect the Scart/RCA Audio Video adapter supplied to the Scart connector of the VCR,
DVD player, video camera or TV.
2 Plug the video/audio connection cable supplied into both the adapter and the Video and
Audio (in) L/R sockets of the projector.
S-Video
3 Plug the S-Video connection cable supplied into the VCR and the S-Video socket of the
projector.
Video (CVBS)
S-Video
Scart connection
Scart adapter
(not for USA version)
Scart adapter
(not for USA version)
