Philips LC3631 - Scart Connection

>
RGBS
1 Connect the Scart/RCA Component Video adapter supplied (1) to the Scart connector of
your Component- or HDTV-video equipment.
2 Connect the Component in sockets of the projector to the R, G, B and Y outputs of the
adapter.
For this, use the Component cable supplied (2).
• If required you can connect the Audio out L/R sockets of the Component- or HDTV-video
equipment to the Audio (in) L/R sockets of the projector.
For this, use an optional audio connection cable (3).
– Audio information from the Component- or HDTV-video equipment will be played via the
projector speaker.
3 Press Menu.
– The menu bar appears on the screen.
The ‘Picture’ item is highlighted.
3 Use Cursor Control left to select ‘Set up’.
4 Use Cursor Control down to select ‘Auto Component Selection’.

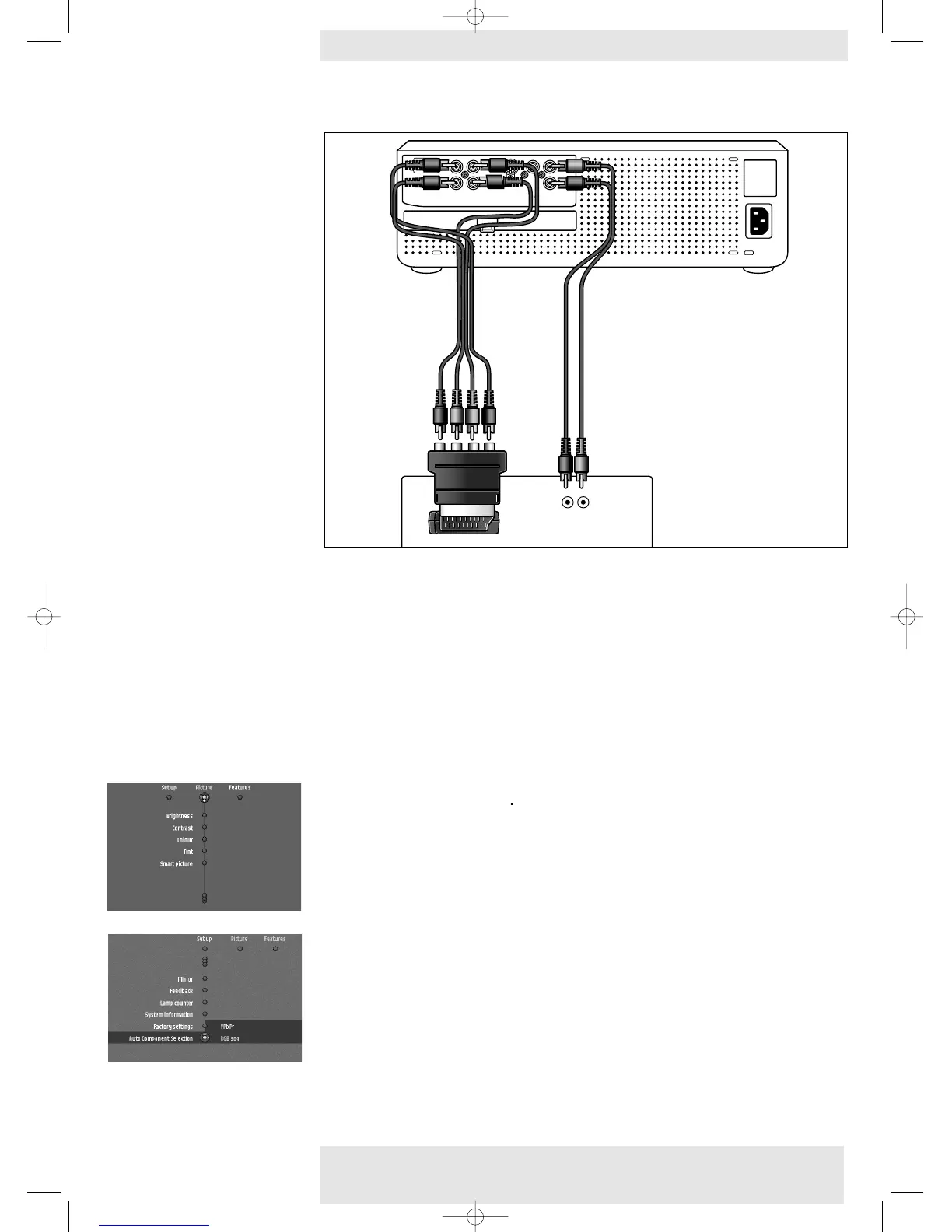

Scart connection
Philips Home Cinema Projector 22 English User guide LC 6281 / LC 6285
4. Installation
Component/HDTV
equipment
R
Audio
out
L
DVD player, Settop Box,
HDTV receiver, etc.
3
2
1
FILTER
MULTIMEDIA PR/R
PB/B
Y/G S-VIDEO VIDEO AUDIO-L
AUDIO-R
S
Connecting to video equipment
